Inference: Multiple Regression

Chapter 25
Math 219

Interest Rates

  • loans 1
  • 10,000 loans through Lending Club, individuals lend to each other
  • Response: interest_rate
  • Predictors: dept_to_income (debt to income ratio), term (number of months for loan), credit_checks (number of credit inquiries in last 12 months)

Multiple Regression Output

lm(interest_rate ~ debt_to_income + term + credit_checks, data = loans) |>
  tidy()
# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      4.31     0.195        22.1 2.09e-105
2 debt_to_income   0.0408   0.00307      13.3 4.76e- 40
3 term             0.158    0.00417      37.9 6.24e-294
4 credit_checks    0.247    0.0193       12.8 3.29e- 37

Linear model: \[\begin{array}{rcl}\widehat{interest\_rate} &=& 4.31+0.0408\times debt\_to\_income\\ &+& 0.158 \times term +0.247\times credit\_checks\end{array}\]

# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      4.31     0.195        22.1 2.09e-105
2 debt_to_income   0.0408   0.00307      13.3 4.76e- 40
3 term             0.158    0.00417      37.9 6.24e-294
4 credit_checks    0.247    0.0193       12.8 3.29e- 37
  • A standard error and \(T\)-statistic are listed for each coefficient
  • We will not discuss the details of the standard error calculation (linear algebra)
# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      4.31     0.195        22.1 2.09e-105
2 debt_to_income   0.0408   0.00307      13.3 4.76e- 40
3 term             0.158    0.00417      37.9 6.24e-294
4 credit_checks    0.247    0.0193       12.8 3.29e- 37
  • Hypothesis test for coefficient for each predictor:
    • \(H_0: \beta_1=0\) vs \(H_A: \beta_1 \ne 0\), given term and credit_checks included in the model
    • \(H_0: \beta_2=0\) vs \(H_A: \beta_2 \ne 0\), given debt_to_income and credit_checks included in the model
    • \(H_0: \beta_3=0\) vs \(H_A: \beta_3 \ne 0\), given debt_to_income and term included in the model
  • For \(k\) predictors, \(df=n-k-1\)
# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      4.31     0.195        22.1 2.09e-105
2 debt_to_income   0.0408   0.00307      13.3 4.76e- 40
3 term             0.158    0.00417      37.9 6.24e-294
4 credit_checks    0.247    0.0193       12.8 3.29e- 37
  • All three coefficients are statistically significant based on the p-values
  • For example, the interpretation of the p-value for debt_to_income predictor is that it would be extremely unlikely to obtain a value for the debt_to_income coefficient that is at least as extreme as 0.0408 if there is no relationship between interest rate and debt to income ratio

Interpreting Coefficients

# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      4.31     0.195        22.1 2.09e-105
2 debt_to_income   0.0408   0.00307      13.3 4.76e- 40
3 term             0.158    0.00417      37.9 6.24e-294
4 credit_checks    0.247    0.0193       12.8 3.29e- 37
  • The model predicts that interest rate will increase by 0.0408 for each increase of 1 in the debt to income ratio (assuming the other predictors are held constant)
  • Interest rate is predicted to increase by 0.247 for each additional credit check
  • Does this mean that credit checks are more important than debt to income ratio?

It is not informative to compare coefficient values when the data are on different scales

predictor mean sd
debt_to_income 19.3 15.0
term 43.3 36
credit_checks 1.96 2.3

Standardized Predictors

  • We can standardize the predictors by calculating the number of standard deviations each value is from the mean
  • The \(i\)th observation of the \(j\)th predictor \(x_j\) is standardized as \[u_{ij}=\frac{x_{ij}-\bar{x}_j}{s_j}\]
  • The standardized predictors have mean = 0, standard deviation = 1
  • Let’s standardize the predictors for the interest rate example
  • We can use the mutate function
loans_standardized <- loans |>
  mutate(debt_to_income =
           (debt_to_income - mean(debt_to_income, na.rm = TRUE))/
           sd(debt_to_income, na.rm = TRUE)) |>
  mutate(term =
           (term - mean(term, na.rm = TRUE))/
           sd(term, na.rm = TRUE)) |>
  mutate(credit_checks =
           (credit_checks - mean(credit_checks, na.rm = TRUE))/
           sd(credit_checks, na.rm = TRUE))
lm(interest_rate ~ debt_to_income + term + credit_checks,
   data = loans_standardized) |>
  tidy()
# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      12.4      0.0459     270.  0
2 debt_to_income    0.612    0.0460      13.3 4.76e- 40
3 term              1.74     0.0460      37.9 6.24e-294
4 credit_checks     0.588    0.0460      12.8 3.29e- 37
  • The intercept is the predicted interest rate when each of the predictors have their mean value
  • Revisiting the debt to income ratio predictor, If debt_to_income ratio is increased by 1 standard deviations, interest_rate is predicted to increase by 0.612 (holding other predictors constant)
  • Similar interpretation for other coefficients
# A tibble: 4 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)      12.4      0.0459     270.  0
2 debt_to_income    0.612    0.0460      13.3 4.76e- 40
3 term              1.74     0.0460      37.9 6.24e-294
4 credit_checks     0.588    0.0460      12.8 3.29e- 37
  • Since all predictors are on the same scale, coefficient comparisons are more meaningful
  • E.g., term has the largest impact on predicted interest_rate
  • p-values have not changed

Coins

  • Next we explore the money data set
  • Predicting amount of money based on the coins in a dish
  • Response: total_amount (USD)
  • Predictors: number_of_coins, number_of_low_coins (pennies, nickels, dimes)
  • We will use this dataset to explore multiple linear regression with correlated predictors

Figure 25.1: A sample of coins with 16 total coins, 10 low coins, and a net worth of $1.90.

Relationships between the variables

  • Of course, there is a relationship between the total amount and each of the predictors
  • The number of coins and the number of low coins are also correlated
  • Multicollinearity occurs when the predictor variables are correlated with themselves

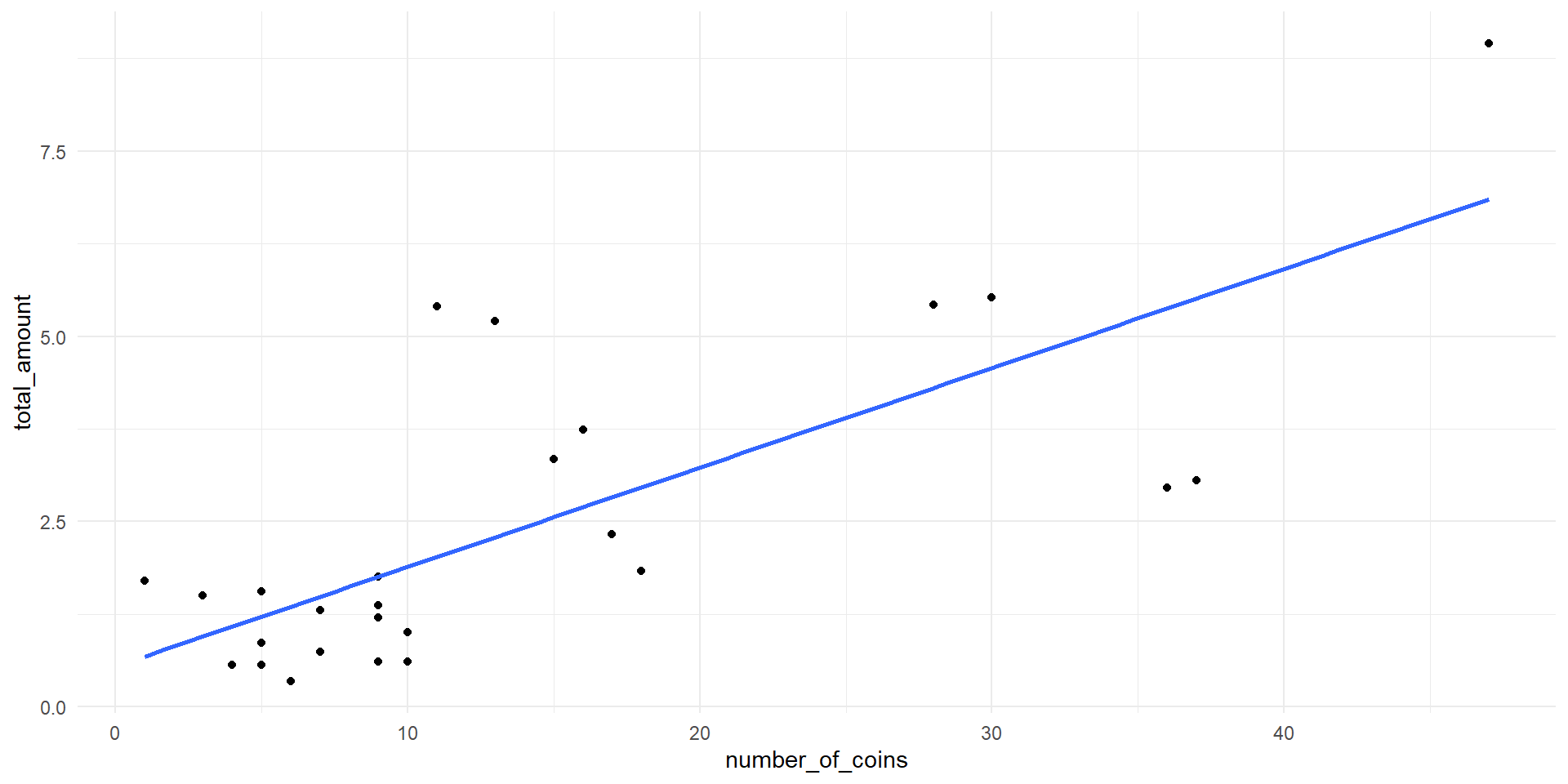

Scatter plot of total_amount vs. number_of_coins.

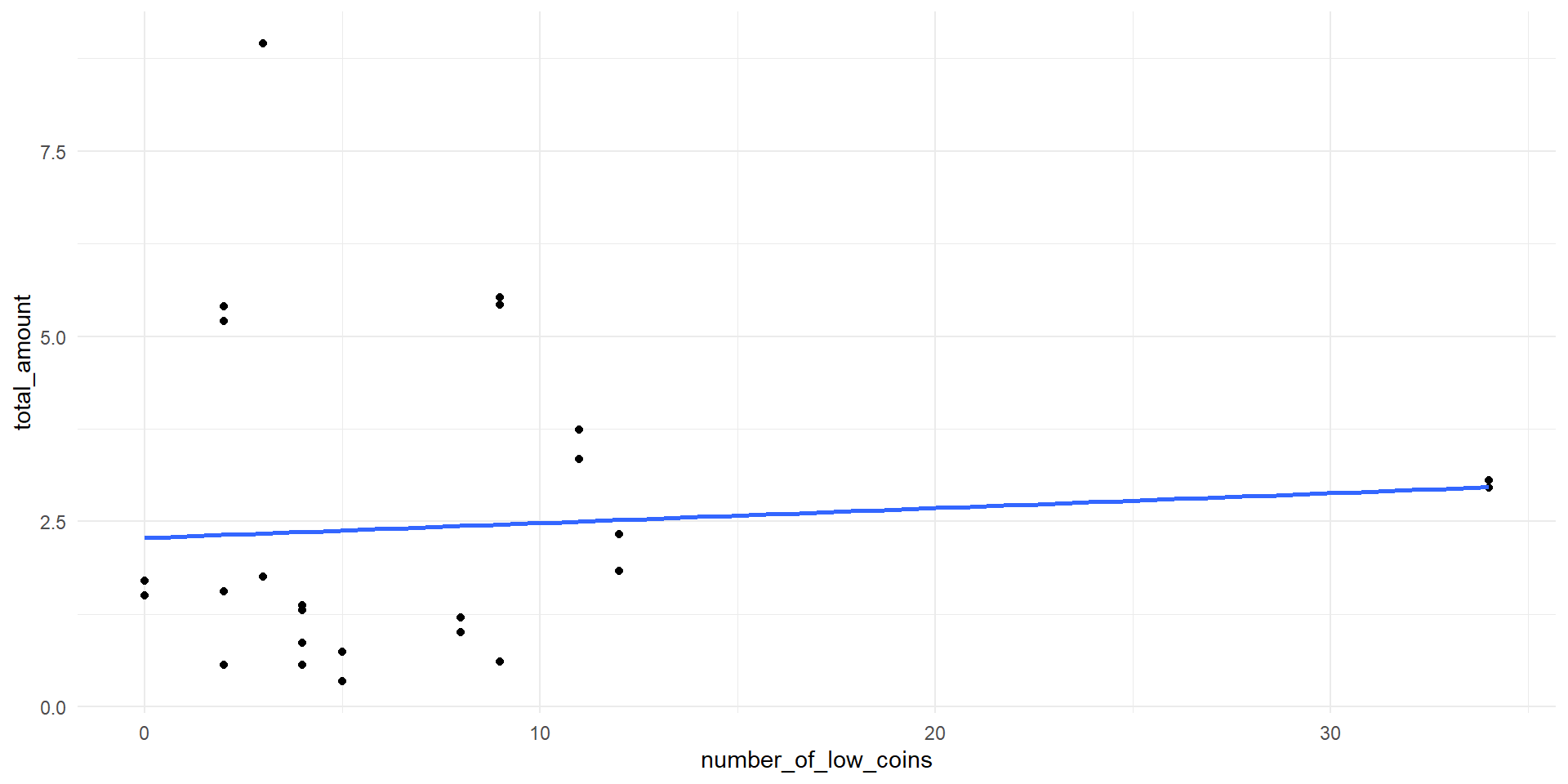

Scatter plot of total_amount vs. number_of_low_coins.

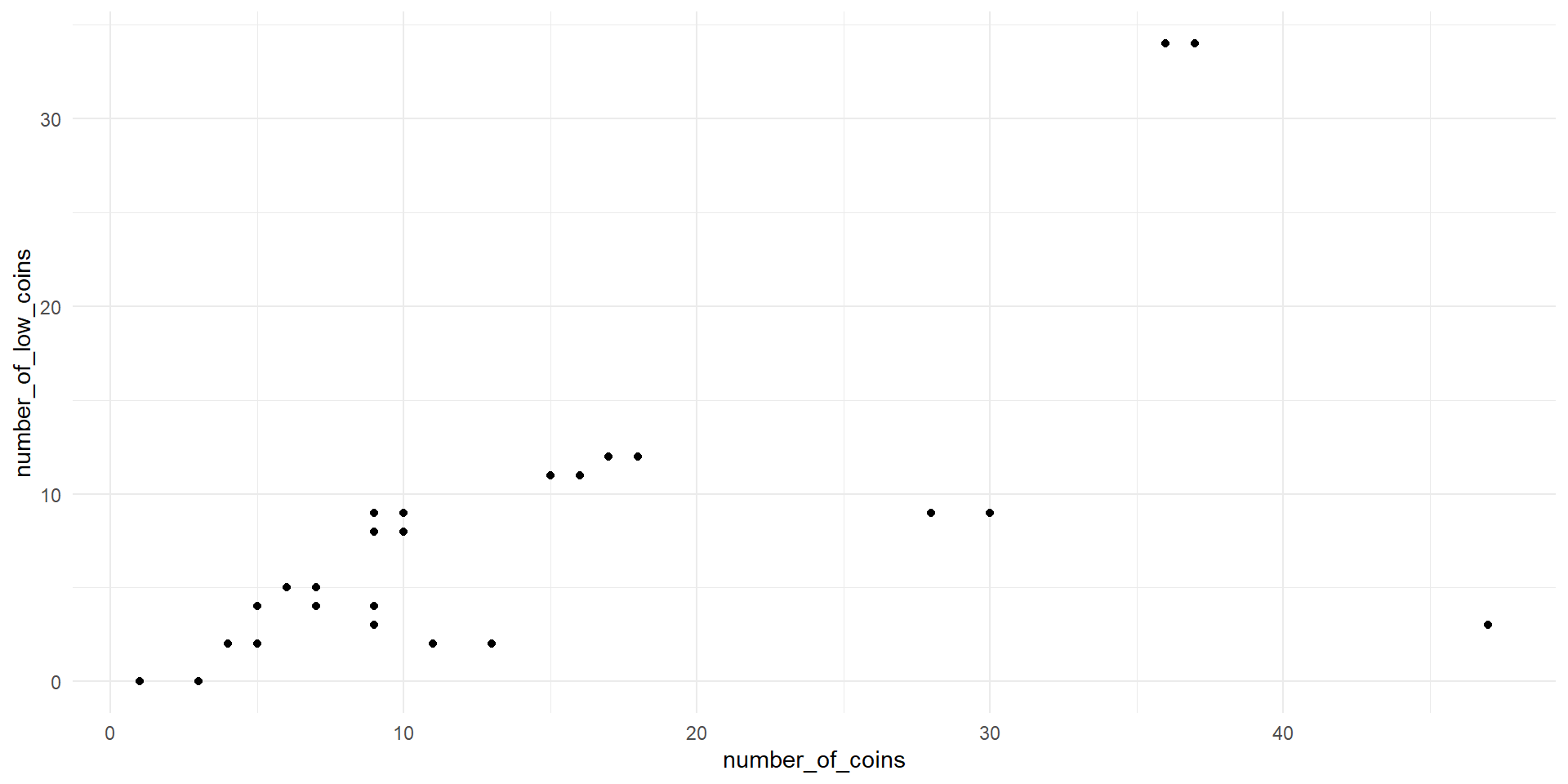

Scatter plot of number_of_coins vs. number_of_low_coins.
  • How is the multiple regression model affected by correlated predictors? \[\begin{array}{rcl}\widehat{total\_amount}&=&0.798 \\ &+& 0.206\times number\_of\_coins\\ &-& 0.160\times number\_of\_low\_coins\end{array}\]
lm(total_amount ~ number_of_coins + number_of_low_coins,
   data = money) |>
  tidy()
# A tibble: 3 × 5
  term                estimate std.error statistic  p.value
  <chr>                  <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)            0.798    0.301       2.65 1.42e- 2
2 number_of_coins        0.206    0.0209      9.89 9.44e-10
3 number_of_low_coins   -0.160    0.0291     -5.51 1.33e- 5

\[\begin{array}{rcl}\widehat{total\_amount}&=&0.798 \\ &+& 0.206\times number\_of\_coins\\ &-& 0.160\times number\_of\_low\_coins\end{array}\]

  • The relationship between the total amount and each predictor (when considered on its own) is positive
  • However, the coefficient for the number of low coins is negative in the multiple regression model
  • Why?

Intepreting Coefficients

\[\begin{array}{rcl}\widehat{total\_amount}&=&0.798 \\ &+& 0.206\times number\_of\_coins\\ &-& 0.160\times number\_of\_low\_coins\end{array}\]

  • The predicted amount increases by $0.206 for each additional coin, while keeping the number of low coins the same. A quarter is added.
  • The predicted amount decreases by $0.160 for each additional low coin, while keeping the number of coins the same. A quarter is replaced by a penny, nickel, or dime.

Multicollinearity

  • Multicollinearity is common when there are multiple predictors, especially in observational studies
  • Indicates that the predictors include some redundant information
  • Makes it difficult to interpret coefficients
  • Often results in models with high \(R^2\), but few coefficients significantly different from 0
  • Can be avoided with careful experimental design (more on this later)

Macroeconomic Data

  • longley dataset (included in R)
  • US macroeconomic data from 1947 to 1962 (n = 16)
  • Note that observations are dependent, because this is a time series
glimpse(longley)
Rows: 16
Columns: 7
$ GNP.deflator <dbl> 83.0, 88.5, 88.2, 89.5, 96.2, 98.1, 99.0, 100.0, 101.2, 1…
$ GNP          <dbl> 234.289, 259.426, 258.054, 284.599, 328.975, 346.999, 365…
$ Unemployed   <dbl> 235.6, 232.5, 368.2, 335.1, 209.9, 193.2, 187.0, 357.8, 2…
$ Armed.Forces <dbl> 159.0, 145.6, 161.6, 165.0, 309.9, 359.4, 354.7, 335.0, 3…
$ Population   <dbl> 107.608, 108.632, 109.773, 110.929, 112.075, 113.270, 115…
$ Year         <int> 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 195…
$ Employed     <dbl> 60.323, 61.122, 60.171, 61.187, 63.221, 63.639, 64.989, 6…
  • Response: Employed: number of people employed
  • Predictors:
    • GNP.deflator: GNP adjusted for inflation
    • GNP: Gross National Product
    • Unemployed: Number of unemployed people
    • Armed.Forces: Number of people in armed forces
    • Population: Non-institutionalized people at least 14 years old
  • Predictors are collinear

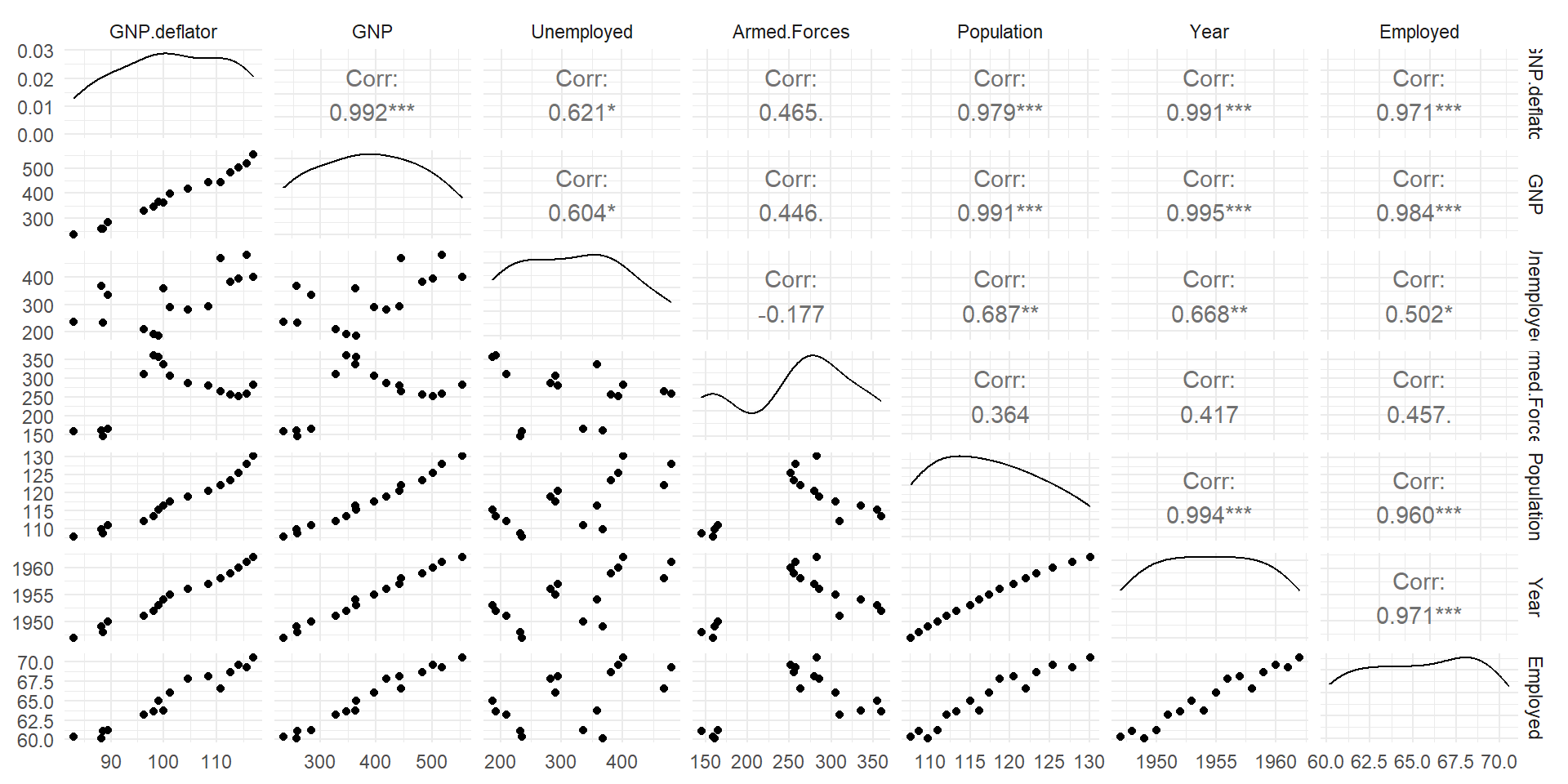

library(GGally)
longley |>
  ggpairs() +
  theme_minimal()

Full Model

lm(Employed ~ ., data = longley) |>
  tidy()
# A tibble: 7 × 5
  term           estimate std.error statistic  p.value
  <chr>             <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  -3482.     890.         -3.91  0.00356
2 GNP.deflator     0.0151   0.0849      0.177 0.863
3 GNP             -0.0358   0.0335     -1.07  0.313
4 Unemployed      -0.0202   0.00488    -4.14  0.00254
5 Armed.Forces    -0.0103   0.00214    -4.82  0.000944
6 Population      -0.0511   0.226      -0.226 0.826
7 Year             1.83     0.455       4.02  0.00304

VIF

  • The variance inflation factor (VIF) for the \(i\)th predictor is \[VIF_i=\frac{1}{1-R_i^2}\]
  • Here, \(R_i^2\) is the \(R^2\) obtained from for regression of predictor \(i\) in terms of the other predictors
  • \(R_i^2\) close to 1 indicates that predictor \(i\) is closely related to the other predictors (resulting in large \(VIF_i\)) and is redundant
  • \(VIF_i>5\) is taken as an indication of collinearity

Variance inflation factors for longley data

library(car)
lm(Employed ~ ., data = longley) |>
  vif()
GNP.deflator          GNP   Unemployed Armed.Forces   Population         Year
   135.53244   1788.51348     33.61889      3.58893    399.15102    758.98060

Manual Variable Selection

  • We can use VIF and p-values to manually reduce the size of the model
  • Remove predictors with high VIF, high p-values
  • Before we start, note that adjusted \(R^2\) for the full model is 0.992
lm(Employed ~ ., data = longley) |>
  glance()
# A tibble: 1 × 12
  r.squared adj.r.squared sigma statistic  p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>    <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.995         0.992 0.305      330. 4.98e-10     6  0.907  14.2  20.4
# ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

Full Model (6 Predictors)

# A tibble: 7 × 5
  term           estimate std.error statistic  p.value
  <chr>             <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  -3482.     890.         -3.91  0.00356
2 GNP.deflator     0.0151   0.0849      0.177 0.863
3 GNP             -0.0358   0.0335     -1.07  0.313
4 Unemployed      -0.0202   0.00488    -4.14  0.00254
5 Armed.Forces    -0.0103   0.00214    -4.82  0.000944
6 Population      -0.0511   0.226      -0.226 0.826
7 Year             1.83     0.455       4.02  0.00304

VIF

GNP.deflator          GNP   Unemployed Armed.Forces   Population         Year
   135.53244   1788.51348     33.61889      3.58893    399.15102    758.98060
  • Population has a large p-value and large VIF
  • Eliminate it from the model

5 Predictor Model

lm(Employed ~ . - Population, data = longley) |>
  tidy()
# A tibble: 6 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)  -3565.     772.         -4.62  0.000957
2 GNP.deflator     0.0277   0.0607      0.456 0.658
3 GNP             -0.0421   0.0176     -2.39  0.0379
4 Unemployed      -0.0210   0.00303    -6.95  0.0000397
5 Armed.Forces    -0.0104   0.00200    -5.21  0.000397
6 Year             1.87     0.399       4.68  0.000867

VIF

GNP.deflator          GNP   Unemployed Armed.Forces         Year
   76.641401   546.870494    14.289620     3.460846   644.626426
  • GNP.deflator has a large p-value and large VIF
  • Eliminate it from the model

4 Predictor Model

# A tibble: 5 × 5
  term           estimate std.error statistic   p.value
  <chr>             <dbl>     <dbl>     <dbl>     <dbl>
1 (Intercept)  -3599.     741.          -4.86 0.000503
2 GNP             -0.0402   0.0165      -2.44 0.0328
3 Unemployed      -0.0209   0.00290     -7.20 0.0000175
4 Armed.Forces    -0.0101   0.00184     -5.52 0.000180
5 Year             1.89     0.383        4.93 0.000449

VIF

         GNP   Unemployed Armed.Forces         Year
  515.123851    14.108642     3.141581   638.128041
  • GNP has the largest p-value and large VIF
  • Eliminate it from the model

Final Model (3 Predictors)

# A tibble: 4 × 5
  term            estimate std.error statistic  p.value
  <chr>              <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  -1797.       68.6        -26.2  5.89e-12
2 Unemployed      -0.0147    0.00167     -8.79 1.41e- 6
3 Armed.Forces    -0.00772   0.00184     -4.20 1.22e- 3
4 Year             0.956     0.0355      26.9  4.24e-12

VIF

  Unemployed Armed.Forces         Year
    3.317929     2.223317     3.890861
  • All predictors have VIF < 5
  • All coefficients are significant
  • Adjusted \(R^2\) is 0.991, so model describes slightly less variability in employment than the full model
  • However, simple model with reduced/no collinearity is preferred
# A tibble: 1 × 12
  r.squared adj.r.squared sigma statistic  p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>    <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.993         0.991 0.332      555. 3.92e-13     3  -2.76  15.5  19.4
# ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

Palmer Penguins

  • penguins dataset 1
  • Measurements for three species of penguins from Palmer Archipelago
  • Response: body_mass_g
  • Predictors:
    • species: Adelie, Chinstrap, or Gentoo
    • bill_length_mm
    • bill_depth_mm
    • flipper_length_mm
    • sex: female or male

Full Model (5 predictors)

  • Full model notation \[\begin{aligned} E[\texttt{body_mass_g}] = \beta_0 &+ \beta_1 \times \texttt{bill_length_mm} \\ &+ \beta_2 \times \texttt{bill_depth_mm} \\ &+ \beta_3 \times \texttt{flipper_length_mm} \\ &+ \beta_4 \times \texttt{sex}_{male} \\ &+ \beta_5 \times \texttt{species}_{Chinstrap} \\ &+ \beta_6 \times \texttt{species}_{Gentoo}\\ \end{aligned}\]
lm(body_mass_g ~ ., data = penguins) |>
  tidy()
# A tibble: 7 × 5
  term              estimate std.error statistic  p.value
  <chr>                <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)        -1461.     571.       -2.56 1.10e- 2
2 speciesChinstrap    -251.      81.1      -3.10 2.09e- 3
3 speciesGentoo       1015.     130.        7.83 6.85e-14
4 bill_length_mm        18.2      7.11      2.56 1.09e- 2
5 bill_depth_mm         67.2     19.7       3.40 7.45e- 4
6 flipper_length_mm     16.0      2.91      5.48 8.44e- 8
7 sexmale              390.      47.8       8.15 7.97e-15
  • Predicted full model \[\begin{aligned} \widehat{\texttt{body_mass_g}} = -1460.99 &+ 18.20 \times \texttt{bill_length_mm} \\ &+ 67.22 \times \texttt{bill_depth_mm} \\ &+ 15.95 \times \texttt{flipper_length_mm} \\ &+ 389.89 \times \texttt{sex}_{male} \\ &- 251.48 \times \texttt{species}_{Chinstrap} \\ &+ 1014.63 \times \texttt{species}_{Gentoo}\\ \end{aligned}\]

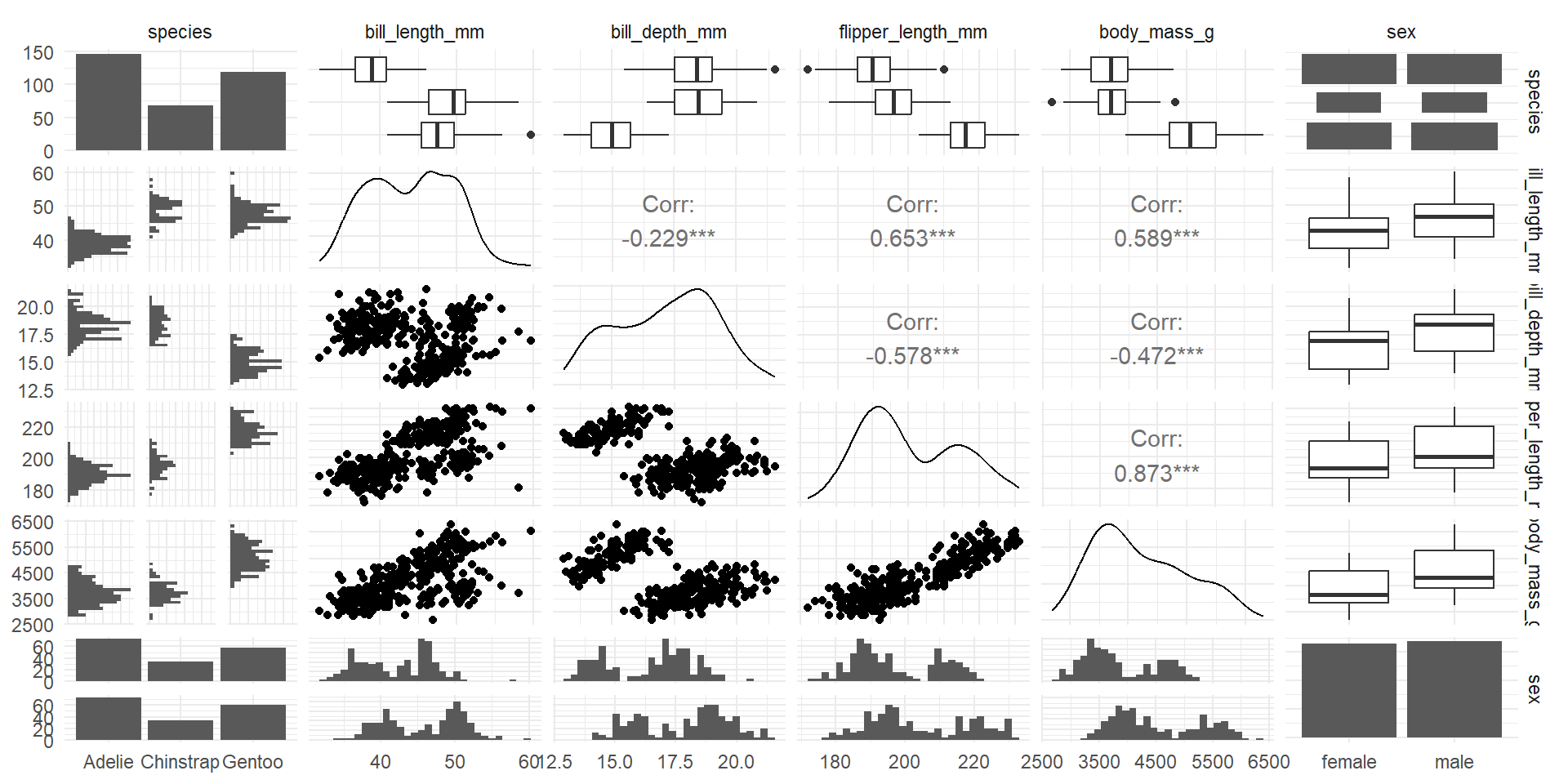

library(GGally)
penguins |>
  ggpairs() +
  theme_minimal()
  • All coefficients are statistically significant
  • Let’s check VIFs
lm(body_mass_g ~ ., data = penguins) |>
  vif()
                       GVIF Df GVIF^(1/(2*Df))
species           41.074074  2        2.531582
bill_length_mm     6.072898  1        2.464325
bill_depth_mm      6.077457  1        2.465250
flipper_length_mm  6.687361  1        2.585993
sex                2.308318  1        1.519315
  • Dropping species
lm(body_mass_g ~ . - species, data = penguins) |>
  tidy()
# A tibble: 5 × 5
  term              estimate std.error statistic  p.value
  <chr>                <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)       -2288.      632.      -3.62  3.37e- 4
2 bill_length_mm       -2.33      4.68    -0.497 6.19e- 1
3 bill_depth_mm       -86.1      15.6     -5.53  6.58e- 8
4 flipper_length_mm    38.8       2.45    15.9   1.88e-42
5 sexmale             541.       51.7     10.5   2.68e-22
lm(body_mass_g ~ . - species, data = penguins) |>
  vif()
   bill_length_mm     bill_depth_mm flipper_length_mm               sex
         1.875634          2.686946          3.364086          1.916248
  • It resulted in all VIFs < 5 but the coefficient at bill_length_mm is not significantly different from 0 (based on p-value)

3 Predictor Model

  • Dropping species and bill_length_mm resulted in all predictors having VIF < 5 and all coefficients significantly different from 0.
# A tibble: 4 × 5
  term              estimate std.error statistic  p.value
  <chr>                <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)        -2247.     625.       -3.59 3.76e- 4
2 bill_depth_mm        -86.9     15.5      -5.63 3.96e- 8
3 flipper_length_mm     38.2      2.08     18.3  3.47e-52
4 sexmale              538.      51.3      10.5  2.17e-22

VIF

    bill_depth_mm flipper_length_mm               sex
         2.653895          2.444470          1.891038

Model Comparison

  • Does the simpler 3 predictor model predict body_mass_g as well as the full model?
  • We will also compare these two models to the best single predictor model, which uses flipper_length_mm as the predictor (note that textbook uses bill_lenght_mm predictor in the example)
  • We would like to compare how well each model performs on data that were not used to train/fit the model (holdout sample)

One approach is to compare adjusted \(R^2\) (as in Chapter 8)

Model predictors adjusted \(R^2\)
Full species, bill_length_mm, bill_depth_mm, flipper_length_mm, sex 0.873
3 predictor bill_depth_mm, flipper_length_mm, sex 0.844
1 predictor flipper_length_mm 0.758

Cross-Validation

  • Another approach is to use cross-validation
  • Divide the data into fourths (4-fold cross-validation)
  • We fit each model 4 times
  • Each time we hold out 1/4 of the data and fit the model to the remaining 3/4 of the data
  • Use the fitted model to predict body_mass_g on the 1/4 of the data we held back
  • Measure the prediction error (residual) on the holdout sample

  • Compare models using cross-validation SSE \[CV\,SSE=\sum_{i=1}^n(\hat{y}_{cv,i}-y_i)^2\]

  • Full model \(CV\,SSE=27,728,698\)

  • Residual plots (most of the residuals around 500g)

Figure 25.7: Full model. The x-axis represents the predicted value, the y-axis represents the error, the difference between predicted value and actual value

Model predictors CV SSE
Full species, bill_length_mm, bill_depth_mm, flipper_length_mm, sex 27,728,698
3 predictor bill_depth_mm, flipper_length_mm, sex 39,756,521
1 predictor flipper_length_mm 52,576,385
  • The full model has the smallest CV SSE
  • We expect the full model to perform better when predicting body_mass_g for penguins

  • If we used bill_length_mm as the textbook does

    • Residual plots (residuals are around 1000g)
    • \(CV\,SSE=141,552,822\)

Figure 25.5: The smaller model. The x-axis represents the predicted value, the y-axis represents the error, the difference between predicted value and actual value.
