Linear Regression, Single Predictor

IMS1 Ch. 7
Math 215

Yurk

Body Measurements

bdims ¹ body measurement dataset.
507 physically active individuals (247 men, 260 women)
age, weight (wgt), height (hgt), sex, 21 body girth variables (e.g., hip girth)

Weight vs. Height

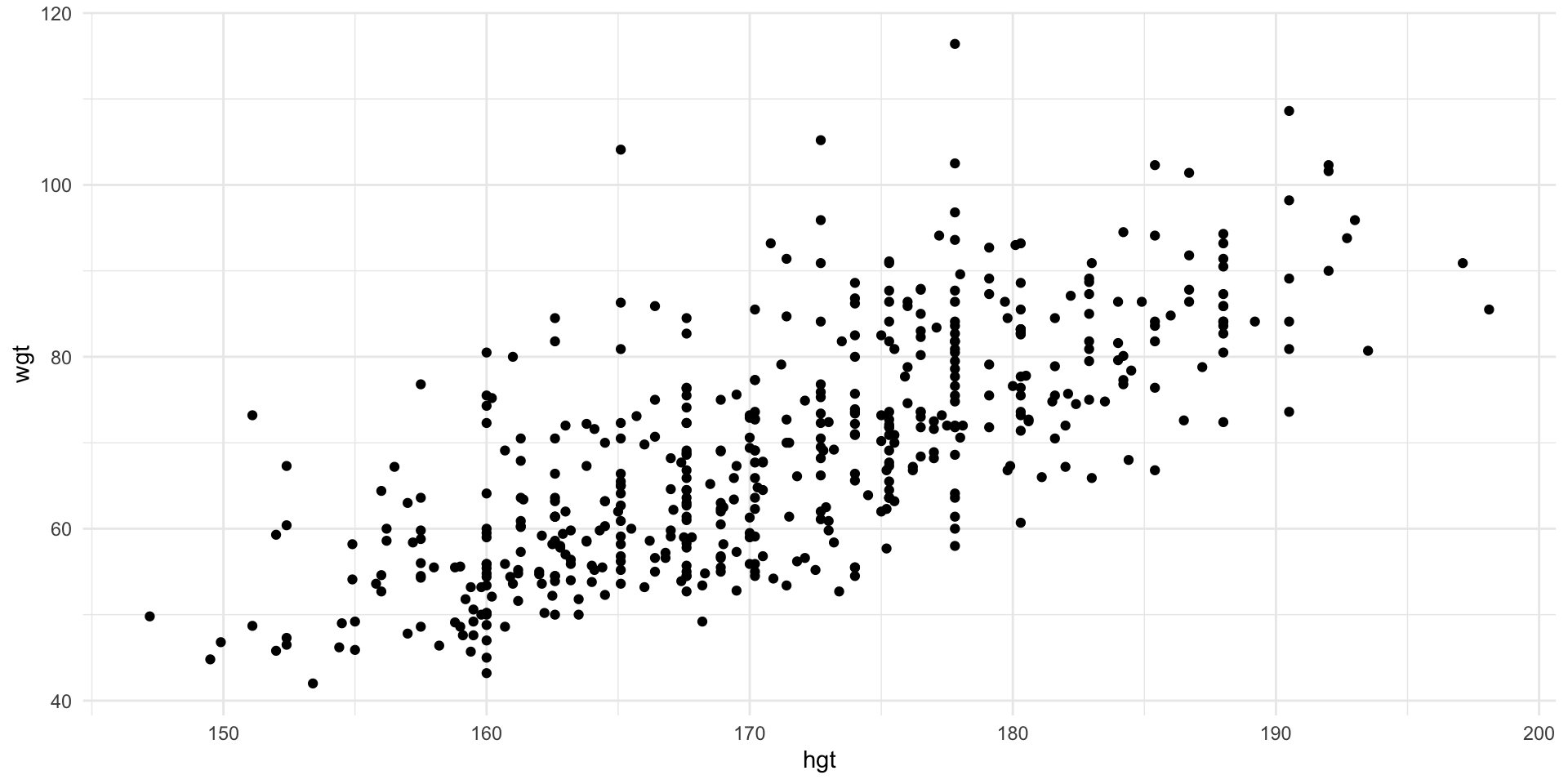

Scatter plot of weight vs. height.

It appears that the data fall roughly along a line.

Linear Model

bdims |> ggplot(aes(x = hgt, y = wgt)) +
  geom_point() +
  geom_smooth(method = "lm", se = FALSE) +
  theme_minimal()

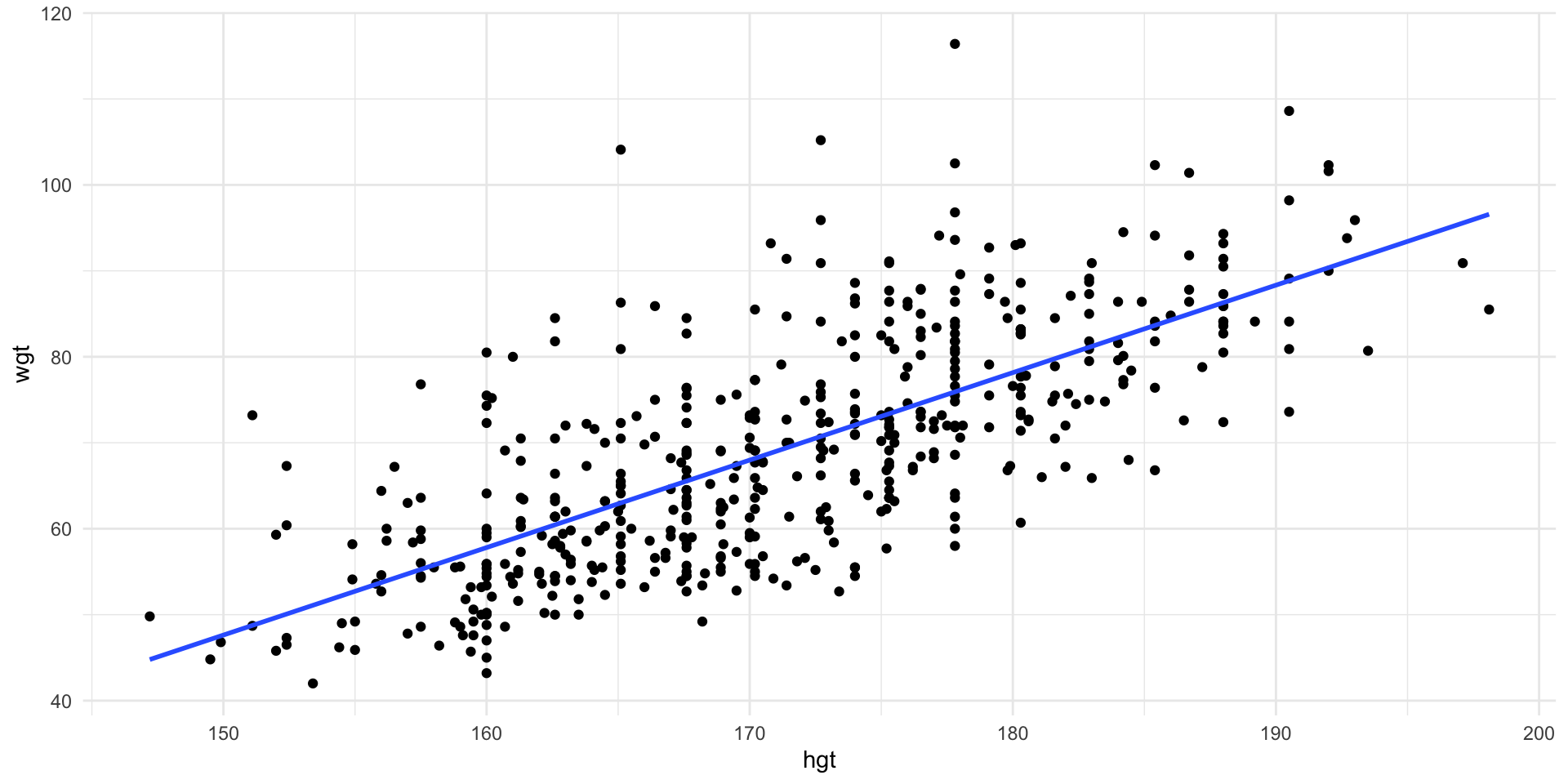

Scatter plot of weight vs. height with line of best fit.

We can add a line of best fit to the scatter plot.

Equation for line: \[y = b_0 + b_1 x\]
\(b_0\) and \(b_1\) are coefficients
- \(b_0\) = intercept
- \(b_1\) = slope
\(b_0\) and \(b_1\) are statistics (fit using sample)
\(\beta_0\) and \(\beta_1\) are the corresponding parameters
The fitted values are \(b_0=-105.0\), \(b_1=1.018\)

Variable Roles

wgt = outcome/response (dependent variable, \(y\))
hgt = predictor (independent variable, \(x\))
We use a hat to indicate an estimate or prediction \[\widehat{wgt} = -105.0 + 1.018 \times hgt\]

Using a Model to Make Predictions

Use the model to predict the weight of a person with a given height
The predicted weight of a 170 cm tall individual is \[\begin{array}{rcl}\widehat{wgt} &=& -105.0 + 1.018 \times hgt\\ &=& -105.0 + 1.018 \times 170 \\ &=& 68.06\, kg\end{array}\]

Correlation

The correlation coefficient describes strength and direction of a linear relationship
Denoted \(r\) for a sample, \(\rho\) for a population
\(-1\leq r\leq1\)

Direction of linear relationship
- \(r>0\) indicates a positive association
- \(r<0\) indicates a negative association.
Strength of linear relationship
- Values close to 0 indicate a weak linear association
- Values close to -1 or 1 indicate a strong linear association

Some scatter plots and their correlations. IMS 1 Figure 7.11.

Let \((x_i,y_i)\) be the \(i\)th observation of the numeric variables \(x\) and \(y\)
Then \(r\) is \[r=\frac{1}{n-1}\sum_{i=1}^n\frac{x_i-\bar{x}}{s_x}\cdot\frac{y_i-\bar{y}}{s_y}\]
Here \(\bar{x}\) and \(\bar{y}\) are the sample means, and \(s_x\) and \(s_y\) are the sample standard deviations of the \(x\) and \(y\)

Scatter plot of weight vs. height with line of best fit.

Correlation between height and weight: \(r=0.717\)

bdims |>
  summarize(n = n(),
            r = cor(hgt, wgt))

# A tibble: 1 × 2
      n     r
  <int> <dbl>
1   507 0.717

Interpretation of coefficients

\[\widehat{wgt} = -105.0 + 1.018 \times hgt\]

Slope: for each additional centimeter of height, we expect weight to increase by 1.018 kg
Intercept: we would predict a 0 cm tall individual to weigh -105.0 kg
In many cases, this intercept interpretation is not useful
Better to think of intercept as positioning line vertically so it passes through the data cloud

Extrapolation

Predicting weight for individual with height outside of the range of the observed data is an example of extrapolation
We should not expect the model to apply outside of this range
Extrapolation can lead to nonsensical predictions (0 cm tall individuals with negative weight) or inaccurate ones

Least Squares Regression

How is the best fit line determined?
Slope and intercept chosen to minimize the error between the observed and predicted response

Plot highlighting three residuals. IMS1 Figure 7.8.

The residual (error) for the \(i\)th observation \((x_i,y_i)\) is \[e_i = y_i - \hat{y}_i\]

Least Squares Line

The least squares regression line minimizes the sum of the squared residuals, \[e_1^2+e_2^2+\cdots+e_n^2\]
Properties of least squares line
- The line passes through the point \((\bar{x},\bar{y})\)
- The slope is \(b_1=\frac{s_y}{s_x}r\)
We can use these properties to compute the slope and intercept if we know the means, SDs, and correlation

Calculating Coefficients

Let’s compute the coefficients for the weight vs. height example
First we need to compute the summary statistics

bdims |>
  summarize(m_hgt = mean(hgt), m_wgt = mean(wgt),
            s_hgt = sd(hgt), s_wgt = sd(wgt),
            r = cor(hgt, wgt))

# A tibble: 1 × 5
     m_hgt    m_wgt    s_hgt    s_wgt         r
     <dbl>    <dbl>    <dbl>    <dbl>     <dbl>
1 171.1438 69.14753 9.407205 13.34576 0.7173011

Calculating the Slope

We use \(b_1=\frac{s_y}{s_x}r\) to calculate the slope

b1 <- 13.34576 / 9.407205 * 0.7173011
b1

[1] 1.017617

Calculating the Intercept

If \((x_0,y_0)\) is a point on a line, then the line can be expressed as \[y-y_0 = b_1(x-x_0)\]
This is called the point-slope form for the line
We calculate the intercept using the property that \((\bar{x},\bar{y})\) is on the line

b0 = 69.14753 - b1 * 171.1438
b0

[1] -105.0112

Using the `lm` function

Typically we will use the lm function (for linear model) to compute the coefficients of the least squares line

lm(wgt ~ hgt, data = bdims)


Call:
lm(formula = wgt ~ hgt, data = bdims)

Coefficients:
(Intercept)          hgt
   -105.011        1.018

Categorical predictor with 2 levels

If the independent variable is categorical can we still use linear regression?
We will consider categorical predictors with 2 levels
Can have more than 2 (chapter 8)
Linear model only makes sense if \(x\) is a number, so we need to recode the levels of the predictor as numbers

In the bdims data, the sex variable has two levels: 0 for female, and 1 for male
This variable already has indicator coding
We can code any variable with two levels this way
Assign one level as 0 and the other as 1

bdims |>
  count(sex)

# A tibble: 2 × 2
    sex     n
  <int> <int>
1     0   260
2     1   247

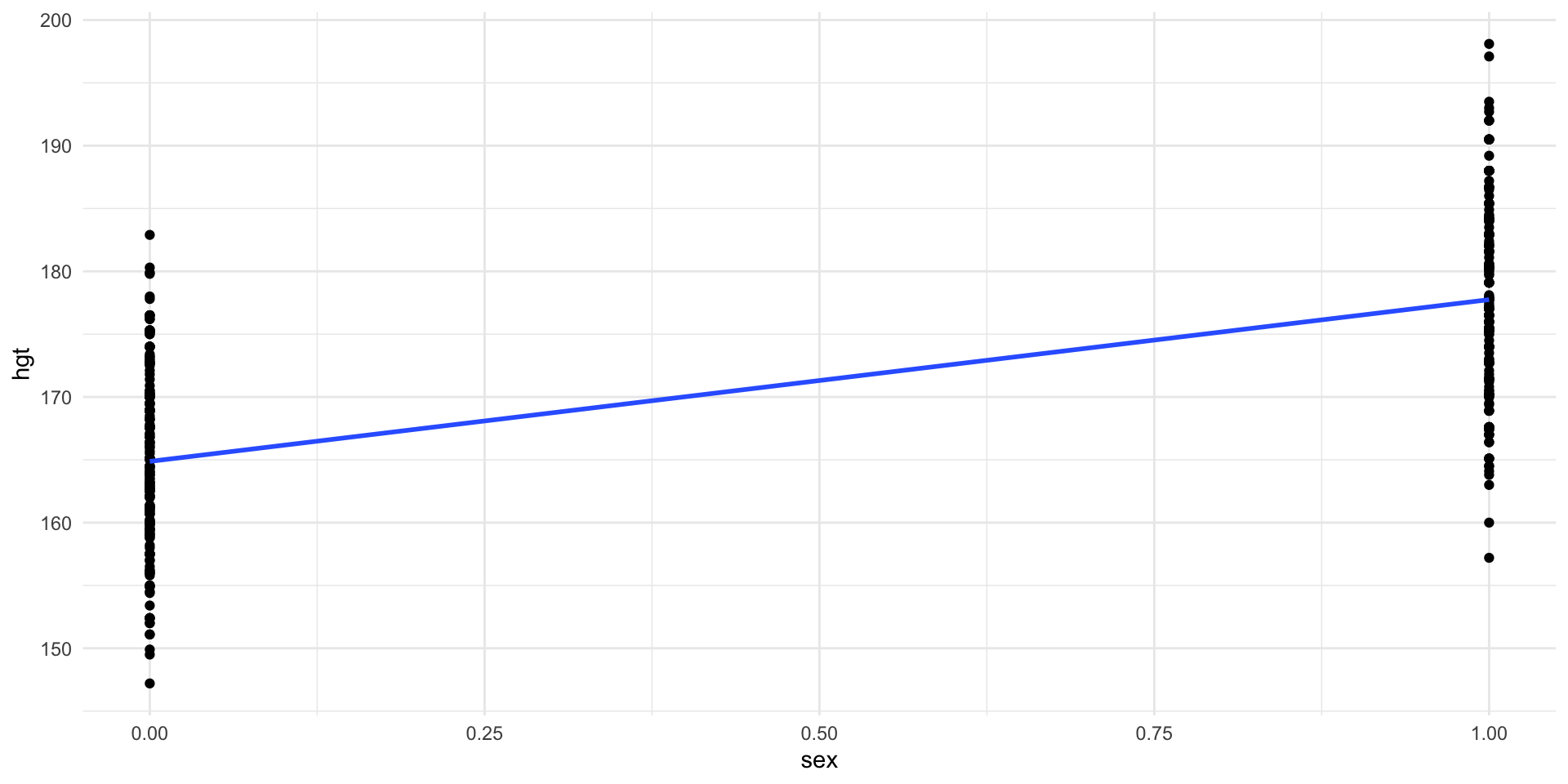

Scatter plot of height vs. sex with least squares regression line.

The equation for the regression line is \[\widehat{hgt}=164.87 + 12.87\times sex\]

lm(hgt ~ sex, data = bdims)


Call:
lm(formula = hgt ~ sex, data = bdims)

Coefficients:
(Intercept)          sex
     164.87        12.87

\[\widehat{hgt}=164.87 + 12.87\times sex\]

Females (sex = 0) \[\widehat{hgt} = 164.87\,cm\]
Males (sex = 1) \[\widehat{hgt} = 164.87 + 12.87 = 177.7\,cm\]
intercept is predicted female height
slope adjusts height to get predicted male height

The model predicts that each female will have the mean height for females and each male will have the mean height for males!

bdims |>
  group_by(sex) |>
  summarize(avg_hgt = mean(hgt))

# A tibble: 2 × 2
    sex avg_hgt
  <int>   <dbl>
1     0 164.872
2     1 177.745

Coefficient of determination (\(R^2\))

The coefficient of determination, also known as R-squared (\(R^2\)) is used to measure how well a model describes the data
\(R^2\) is the proportion of variation in the outcome/response variable that is explained by the model
For simple linear regression (one numeric predictor), \(R^2 = r^2\)

\(R^2\) will always have values between 0 and 1
Value close to 1: linear model fits the data well (describes nearly 100% of the variability in outcomes)
Value close to 0 indicates that it does not fit well

Total Sum of Squares

total sum of squares, denoted SST, describes the total variation in the outcome \[SST = (y_1-\bar{y})^2 + (y_2-\bar{y})^2 + \cdots + (y_n-\bar{y})^2\]
Note that SST does not involve the model at all
However, can think of a null model that uses the sample mean as the prediction
SST is the sum of the squared residuals for the null model

Sum of Squared Errors

sum of squared errors, denoted SSE, quantifies the variation in outcomes that the model fails to describe \[\begin{array}{rcl}SSE &=& (y_1-\hat{y}_1)^2 + (y_2-\hat{y}_2)^2 + \cdots + (y_n-\hat{y}_n)^2 \\ &=& e_1^2 + e_2^2 + \cdots + e_n^2\end{array}\]
Given by the sum of the squared residuals, which we have encountered before

Regression Sum of Squares

regression sum of squares, denoted SSR, measures the variation that is accounted for by the model \[SSR = SST - SSE\]
Hence, the proportion of variation in the outcome that is described by the model is \[R^2 = \frac{SST - SSE}{SST} = 1 - \frac{SSE}{SST}\]

We can have R compute \(R^2\)
Height explains about 51.5% of the variability in weights

library(broom)

lm(wgt ~ hgt, data = bdims) |>
  glance()

# A tibble: 1 × 12
  r.squared adj.r.squared sigma statistic  p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>    <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.515         0.514  9.31      535. 2.83e-81     1 -1849. 3705. 3718.
# ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

Sex explains about 46.9% of the variability in heights

lm(hgt ~ sex, data = bdims) |>
  glance()

# A tibble: 1 × 12
  r.squared adj.r.squared sigma statistic  p.value    df logLik   AIC   BIC
      <dbl>         <dbl> <dbl>     <dbl>    <dbl> <dbl>  <dbl> <dbl> <dbl>
1     0.469         0.468  6.86      446. 2.23e-71     1 -1695. 3396. 3409.
# ℹ 3 more variables: deviance <dbl>, df.residual <int>, nobs <int>

Residual plots

residual plot is a plot of residuals vs. predicted values (scatter plot with points \((\hat{y}_i,e_i)\)
Useful for diagnosing problems with the linear models
If there is a pattern in the residual plot, then a more complicated model (e.g., a nonlinear model or a model that includes more predictors) may be more appropriate

Residual plot can be created using the augment function from the broom package.
The predictions are stored in the variable \(.fitted\) and the residuals are stored as \(.resid\)

library(broom)

lm1 <- lm(wgt ~ hgt, data = bdims)

bdims_aug <- augment(lm1, bdims)

There are no obvious patterns in the height vs. weight residual plot.

bdims_aug |>
  ggplot(aes(x = .fitted, y = .resid)) +
  geom_point() +
  geom_hline(yintercept = 0, color = "red", linetype = "dashed") +
  theme_minimal()

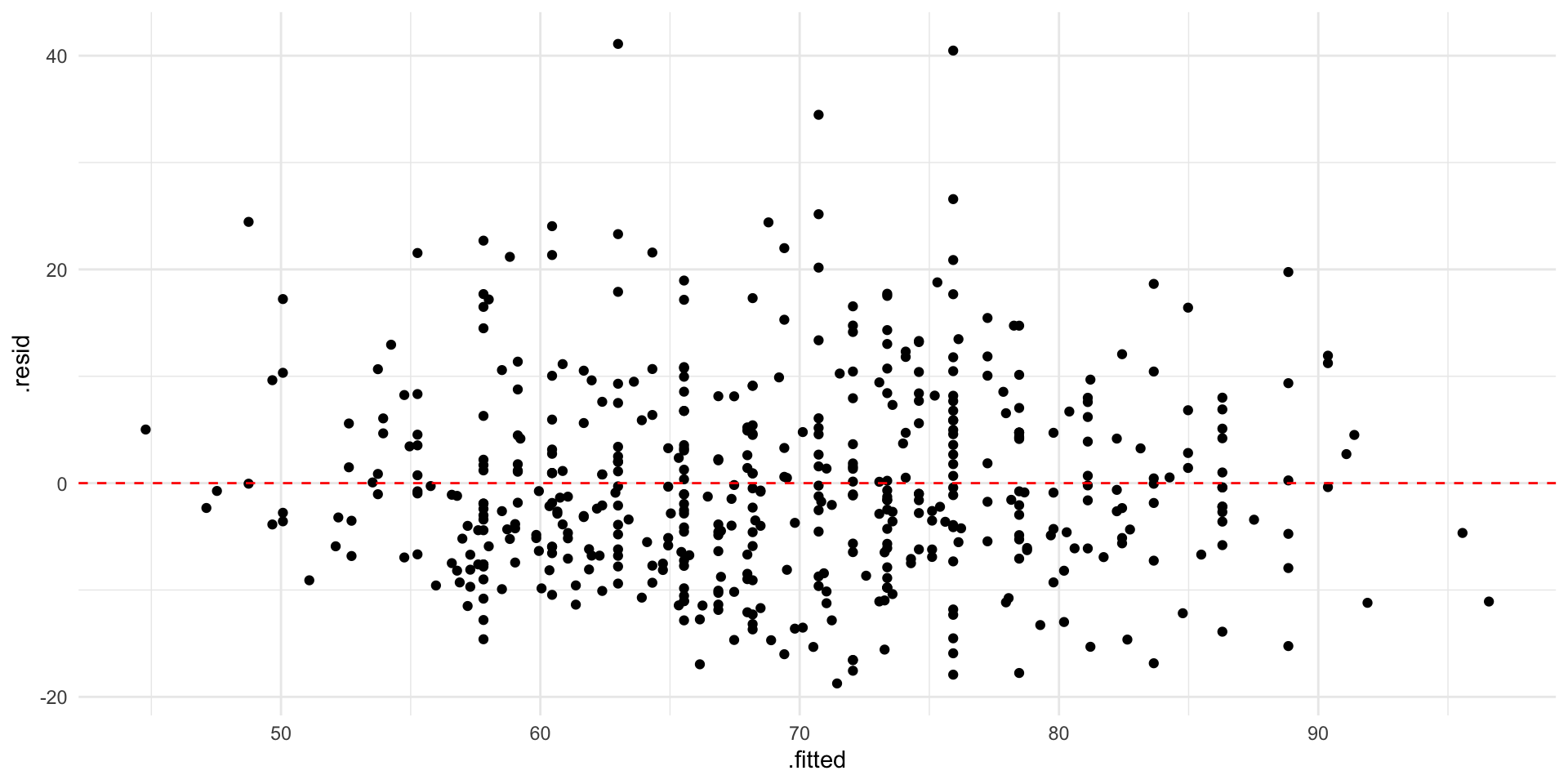

Residual plot for weight vs. height with horizontal line at \(e=0\) for reference.

More residual plots

Some scatter plots (top) and corresponding residual plots (bottom). From IMS1 Fig. 7.10
