Comparing Many Means

IMS1 Ch. 22
Math 215

Yurk

Vocabulary Score

Do scores on a vocabulary test vary between self-identified social classes?
You can try answering questions from the Wordsum test here
Wordsum test has 10 questions, scores can range from 0-10

Inference

Self-identified social classes: “Lower” (L), “Middle” (M), “Upper” (U), “Working” (W)
Let \(\mu_C\) be the mean score on the Wordsum test for social class \(C\)
We will conduct a hypothesis test with hypotheses
- \(H_0: \mu_L=\mu_M=\mu_U=\mu_W\)
- \(H_A:\) at least one of the means is different

Data

gss ¹ dataset
Sample of 795 individual responses from General Social Survey (GSS)
wordsum is score on Wordsum test
class is self-identified social class

gss

# A tibble: 795 × 2
   wordsum class
     <dbl> <chr>
 1       6 MIDDLE
 2       9 WORKING
 3       6 WORKING
 4       5 WORKING
 5       6 WORKING
 6       6 WORKING
 7       8 MIDDLE
 8      10 WORKING
 9       8 WORKING
10       9 UPPER
# ℹ 785 more rows

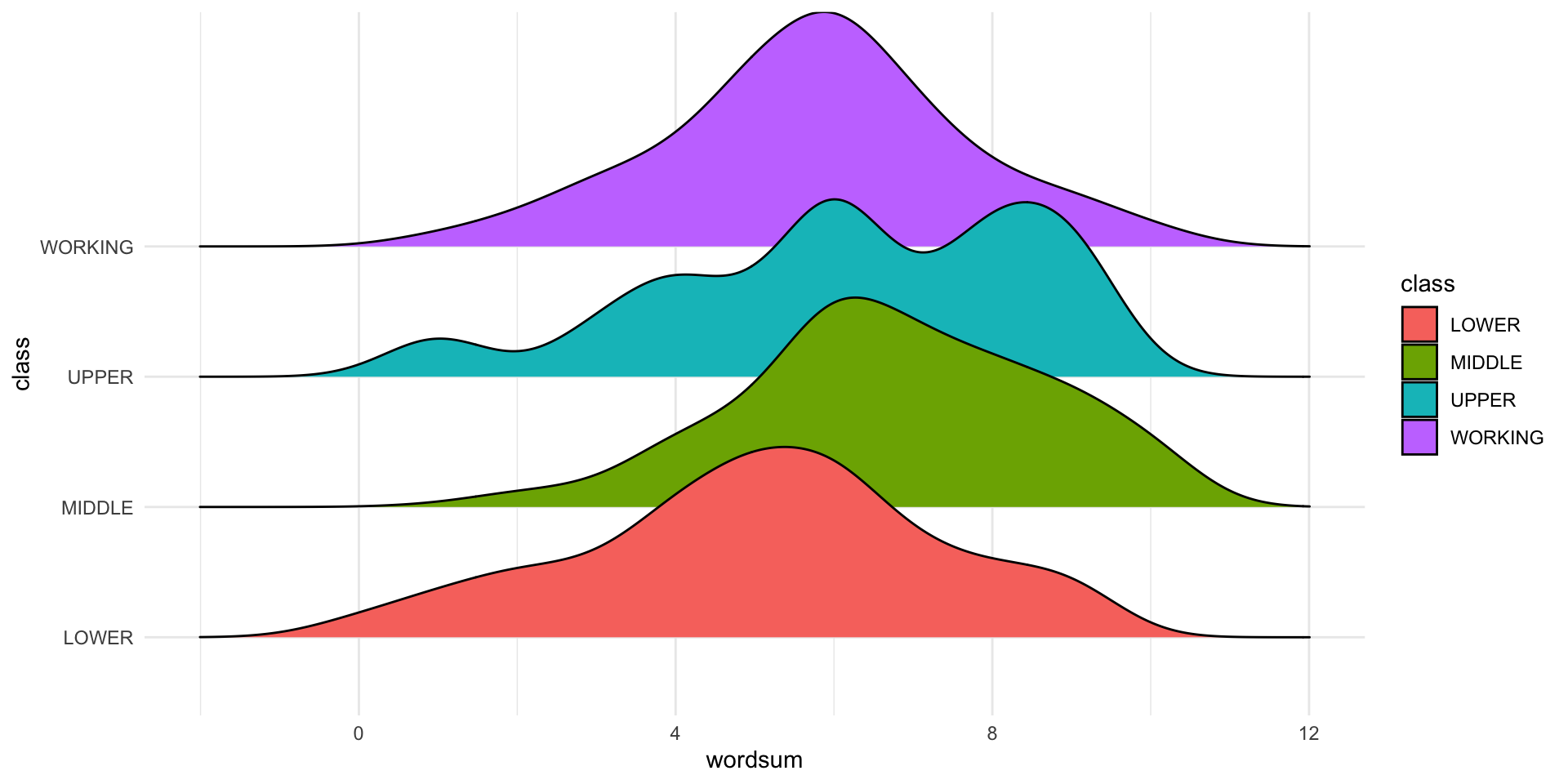

Ridge plot showing distribution of word scores for each self-identified social class

class	n	mean	sd
LOWER	41	5.07	2.24
MIDDLE	331	6.76	1.89
UPPER	16	6.19	2.34
WORKING	407	5.75	1.87

A Holistic Approach to Comparing Means

One way to approach this problem would be to make 6 pairwise comparisons (comparing each group to every other group) using two-sample t-tests
However, if the null hypothesis is true, there is a 5% chace of making a type 1 error with each test (if \(\alpha=0.05\))
The probability of making at least 1 type 1 error would be \(1-0.95^6=0.265\)
Instead we take a holistic view and test whether at least one of the means is different from the others

If there is convincing evidence that at least one of the means is different we can follow up with post-hoc pairwise tests to see which groups are different
We will take steps to control the type 1 error given the multiple hypothesis tests
This is a topic we will discuss in more detail later

F Statistic

The test statistic for three or more means is an \(F\) statistic
\(F\) is a ratio that compares variability between groups to variability within groups
E.g., if variability in word scores between social classes is large relative the the variability within social classes, then \(F\) will be large
Larger values of \(F\) give stronger evidence against the null hypothesis

Variability Between Groups

\(MSG\) is the mean square between groups, a measure of variability between groups \[MSG=\frac{1}{df_{G}}SSG\]
The degrees of freedom for \(k\) groups is \(df_{G}=k-1\)

\(SSG\) is the sum of squares between groups \[SSG = \sum_{i=1}^kn_i(\bar{x}_i-\bar{x})^2\]
\(\bar{x}_i\) is the mean for group \(i\)
\(\bar{x}\) is the overall mean, which we can compute directly from the data or from the group means \[\bar{x}=\frac{n_1\bar{x}_1 +n_2\bar{x}_2+\cdots +n_k\bar{x}_k}{n_1+n_2 + \cdots + n_k}\]

For the vocabulary test data the overall mean score is \[\begin{array}{rcl}\bar{x} &=& \frac{n_L\bar{x}_L +n_M\bar{x}_M+n_U\bar{x}_U+ n_W\bar{x}_W}{n_L+n_M + n_U + n_W}\\ &=&\frac{41\cdot5.07 + 331\cdot6.76+ 16 \cdot 6.19 + 407\cdot 5.75}{41+331+16+407}\\ &=& 6.14\end{array}\]
The sum of squares between groups is

\[\begin{array}{rcl}SSG &=& n_L(\bar{x}_L-\bar{x})^2 +n_M(\bar{x}_M-\bar{x})^2 + n_U(\bar{x}_U-\bar{x})^2+ n_W(\bar{x}_W-\bar{x})^2 \\ &=& 41\cdot(5.07-6.14 )^2+ 331\cdot(6.76-6.14)^2+ 16 \cdot (6.19-6.14)^2 + 407\cdot (5.75-6.14)^2\\ &=& 236.56\end{array}\]

The degrees of freedom are \(df_{G}=k-1=4-1=3\)
Thus, the mean square between groups is \[MSG=\frac{1}{df_{G}}SSG=\frac{1}{3}\cdot236.56=78.85\]

Variability Within Groups

\(MSE\) is the mean square error, a measure of variability within groups \[MSE=\frac{1}{df_{E}}SSE\]
The degrees of freedom for a sample of size \(n\) with \(k\) groups is \(df_{E}=n-k\)

SSE is the sum of squared errors, which can be computed two ways
The first way requires us to computed \(SSG\) first. \(SSE = SST - SSG\), where \(SST\) is the sum os squares total \[SST=\sum_{i=1}^n(x_i-\bar{x})^2\]
The second way uses the sample variances \[SSE = (n_1-1)s_1^2+(n_2-1)s_2^2+\cdots+(n_k-1)s_k^2\]

For the vocabulary test data the SSE is

\[\begin{array}{rcl}SSE &=& (n_L-1)s_L^2+(n_M-1)s_M^2+(n_U-1)s_U^2+(n_W-1)s_W^2\\ &=& (41-1)\cdot2.24^2+(331-1)\cdot1.89^2+(16-1)\cdot2.34^2+(407-1)\cdot1.87^2\\ &=& 2869.80\end{array}\]

The degrees of freedom are \(df_{E}=n-k=795-4=791\)
Thus, the mean square error is \[MSE=\frac{1}{df_{E}}SSE=\frac{1}{791}\cdot2869.80=3.628\]

Calculating F

\(F\) is computed as \[F=\frac{Variability\,Between\,Groups}{Variability\,Within\,Groups}=\frac{MSG}{MSE}\]
For the vocabulary test data \(F\) is \[F=\frac{78.85}{3.628}=21.73\]

Usually we won’t compute the sums of squares, mean squares, or \(F\) statistic ourselves
They are displayed in Analaysis of Variance (ANOVA) tables that are printed by statistical software like R

ANOVA table

aov(wordsum ~ class, data = gss) |>
  tidy()

# A tibble: 2 × 6
  term         df sumsq meansq statistic   p.value
  <chr>     <dbl> <dbl>  <dbl>     <dbl>     <dbl>
1 class         3  237.  78.9       21.7  1.56e-13
2 Residuals   791 2870.   3.63      NA   NA

Key for understanding the ANOVA table

term	df	sumsq	meansq	statistic
grouping variable	\(df_G=k-1\)	\(SSG\)	\(MSG=SSG/df_G\)	\(F=MSG/MSE\)
Residuals (error)	\(df_E=n-k\)	\(SSE\)	\(MSE=SSE/df_E\)

Hypothesis Test Using Random Permutation

We can use randomization to simulate variability in the \(F\) statistic under a true null hypothesis
To simulate independence between word score and social class, we randomly permute the values of the response (word score)

set.seed(8675309)

library(infer)
gss_perm <- gss |>
  specify(wordsum ~ class) |>
  hypothesize(null = "independence") |>
  generate(reps = 1000, type = "permute") |>
  calculate(stat = "F")

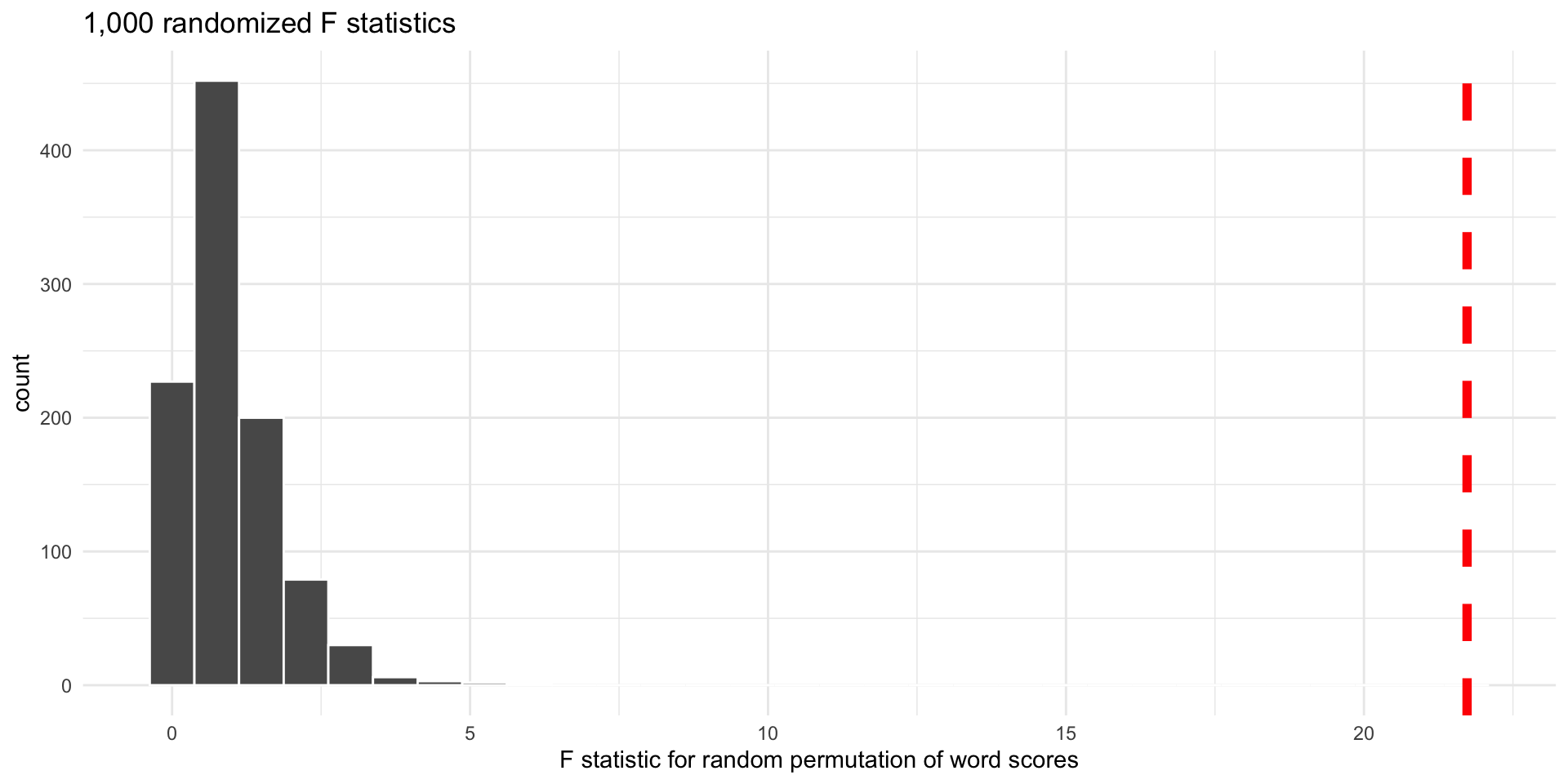

Histogram of F scores (null distribution) for 1,000 random permutations of word scores. Dashed vertical line indicates observed F score.

There are 0 randomized \(F\) statistics that are at least as large as the observed value (21.73)
The p-value is approximately \(0/1000 = 0\)

Hypothesis Test Using a Mathematical Model

F-distribution

When the null hypothesis is true and the following conditions are met, the \(F\) statistic has an \(F\)-distribution with \(df_1=k-1\) and \(df_2=n-k\) degrees of freedom.

Independent observations within and between groups
Normality: Large samples and no extreme outliers.
Equal variance: Variability across groups is about the same, especially when group sizes vary greatly

Like \(X^2\), the \(F\) statistic is always non-negative
To compute a p-value we find the area in the right tail of the appropriate \(F\)-distribution that is beyond the observed value of \(F\)

Checking Condtions

For the word score example, the distributions are approximately normal, and the variances are roughly equal (this is particluarly important because the group sizes are so different)
The observations are independent, because the GSS uses random sampling

Calculate P-Value Using F-distribution

The degrees of freedom for the word score data are \(df_G=3\) and \(df_E=791\)
The observed value of \(F\) is 21.73

1 - pf(21.73, df1 = 3, df2 = 791)

[1] 1.569855e-13

We can also read p-value from the ANOVA table

aov(wordsum ~ class, data = gss) |>
  tidy()

# A tibble: 2 × 6
  term         df sumsq meansq statistic   p.value
  <chr>     <dbl> <dbl>  <dbl>     <dbl>     <dbl>
1 class         3  237.  78.9       21.7  1.56e-13
2 Residuals   791 2870.   3.63      NA   NA

Conclusions

With \(F=21.73\) we reject the null hypothesis (p-value < 0.001). There is convincing evidence that at least one of the mean word scores is different between the self-identified social classes.
We are unable to conclude which social classes are different based on this analysis.
However, if we take care to control the type 1 error we can follow up with post-hoc tests to explore the pairwise differences in means
We will consider such post-hoc analyses later
