ANCOVA

Additional Topic
Math 215

Yurk

Hot Dogs

Are hot dogs made with some types of meat healthier than others?
We will consider both calorie content and sodium levels for beef, poultry, and meat (mostly pork and beef) hot dogs
Based on an example from text by Heiberger and Holland (2015)
hotdog dataset from HH package

Hot dogs made from poultry are often lower in calories
Do manufacturers add sodium to enhance flavor to make up for the lower fat content?
We might start to approach this question by comparing sodium content between hot dog types using a standard one-way ANOVA

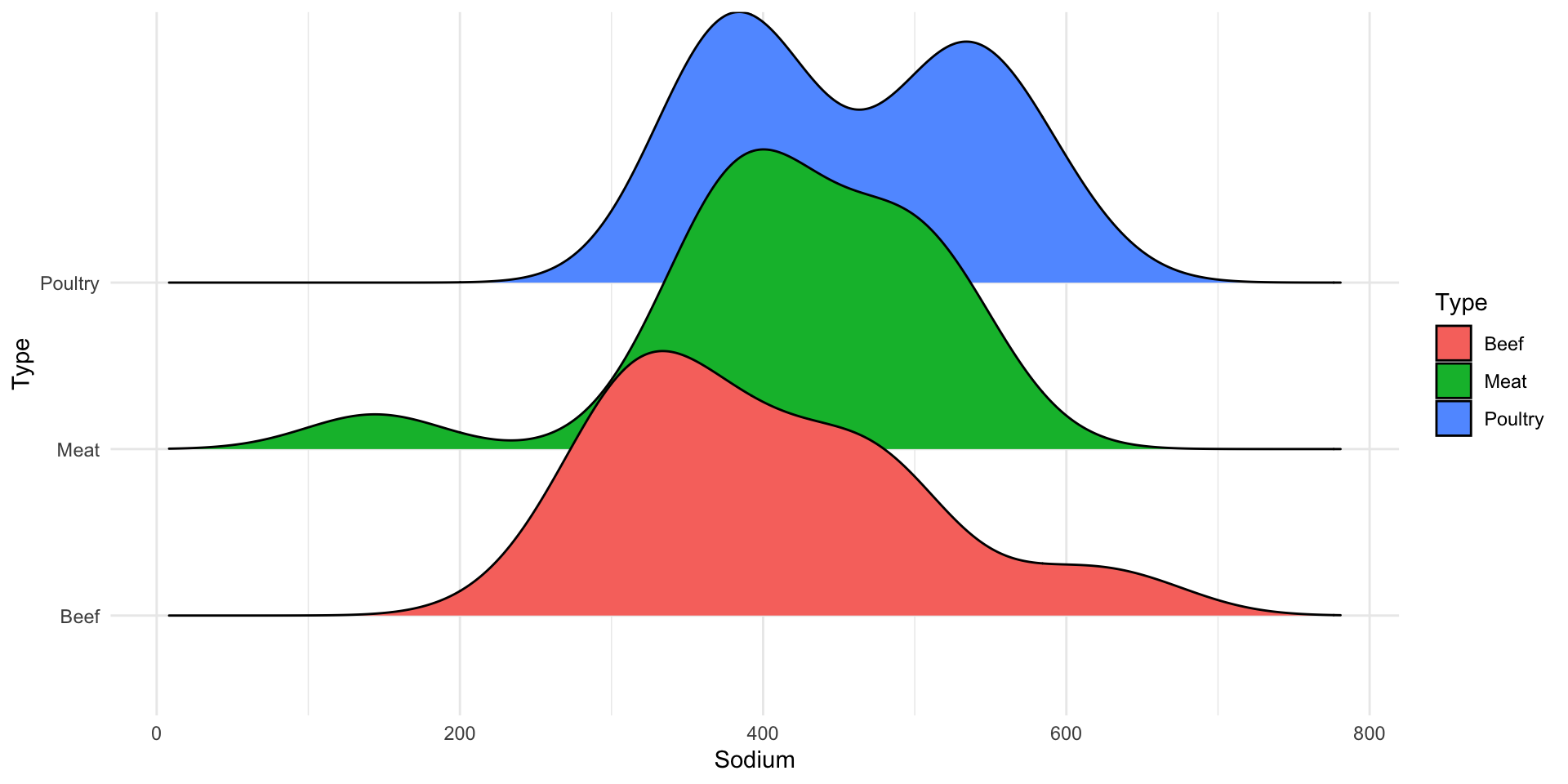

Ridge plot showing distributions of sodium content in different types of hot dogs.

Type	n	mean	sd
Beef	20	401	102
Meat	17	419	93.9
Poultry	17	459	84.7

One-Way ANOVA

Statistical model \[y_{ij}=\mu + \alpha_i + \varepsilon_{ij}\] ANOVA table

hds_lm <- lm(Sodium ~ Type, data = hotdog)

hds_lm |>
  anova() |>
  tidy()

# A tibble: 2 × 6
  term         df   sumsq meansq statistic p.value
  <chr>     <int>   <dbl>  <dbl>     <dbl>   <dbl>
1 Type          2  31739. 15869.      1.78   0.179
2 Residuals    51 455249.  8926.     NA     NA

Based on this analysis we do not have convincing evidence that at least one of the mean sodium levels is different
However, we have not accounted for the dependence of sodium on calorie content
Next we will conduct an analysis that accounts for this covariate

Analysis of Covariance (ANCOVA)

Statistical model for the \(j\)th observation in the \(i\)th group: \[y_{ij}=\mu + \alpha_i + \beta(X_{ij} - \bar{\bar{X}})+\varepsilon_{ij}\]
Like before, \(\mu\) is the overall population mean, \(\alpha_i\) is the differential effect of group \(i\), \(\beta\) is the slope
\(\bar{\bar{X}}\) is the overall mean of the \(X_{ij}\)s
Each group has a different intercept (\(\mu+\alpha_i\))
All groups have a common slope \(\beta\)

Linear model

We can fit a linear model as we have in the past
One categorical predictor, one numeric predictor

hdsc_lm <- lm(Sodium ~ Calories + Type, data = hotdog)

hdsc_lm |>
  tidy()

# A tibble: 4 × 5
  term        estimate std.error statistic  p.value
  <chr>          <dbl>     <dbl>     <dbl>    <dbl>
1 (Intercept)  -113.      53.3      -2.13  3.85e- 2
2 Calories        3.28     0.331     9.92  2.09e-13
3 TypeMeat       11.3     18.3       0.618 5.40e- 1
4 TypePoultry   183.      22.2       8.24  7.15e-11

The linear model that R fit to the data is \[\begin{array}{rcl}\widehat{Sodium} &=& -113 + 3.28\times Calories\\ && +11\times TypeMeat + 183\times TypePoultry\end{array}\]
We can recast the standard ANCOVA model in a similar form \[y_{ij} = (\mu-\beta\bar{\bar{X}}+\alpha_1) + (\alpha_i - \alpha_1) + \beta X_{ij} + \varepsilon_{ij}\]
By identifying terms in this model with the regression output, we can estimate the coefficients in the standard model

Prediction model in standard form \[\widehat{Sodium} = 428+3.28\times (Calories-145) + \left\{\begin{array}{ll}-65 & \text{if } Beef\\ -53 & \text{if } Meat \\ 118 & \text{if } Poultry\end{array}\right.\]

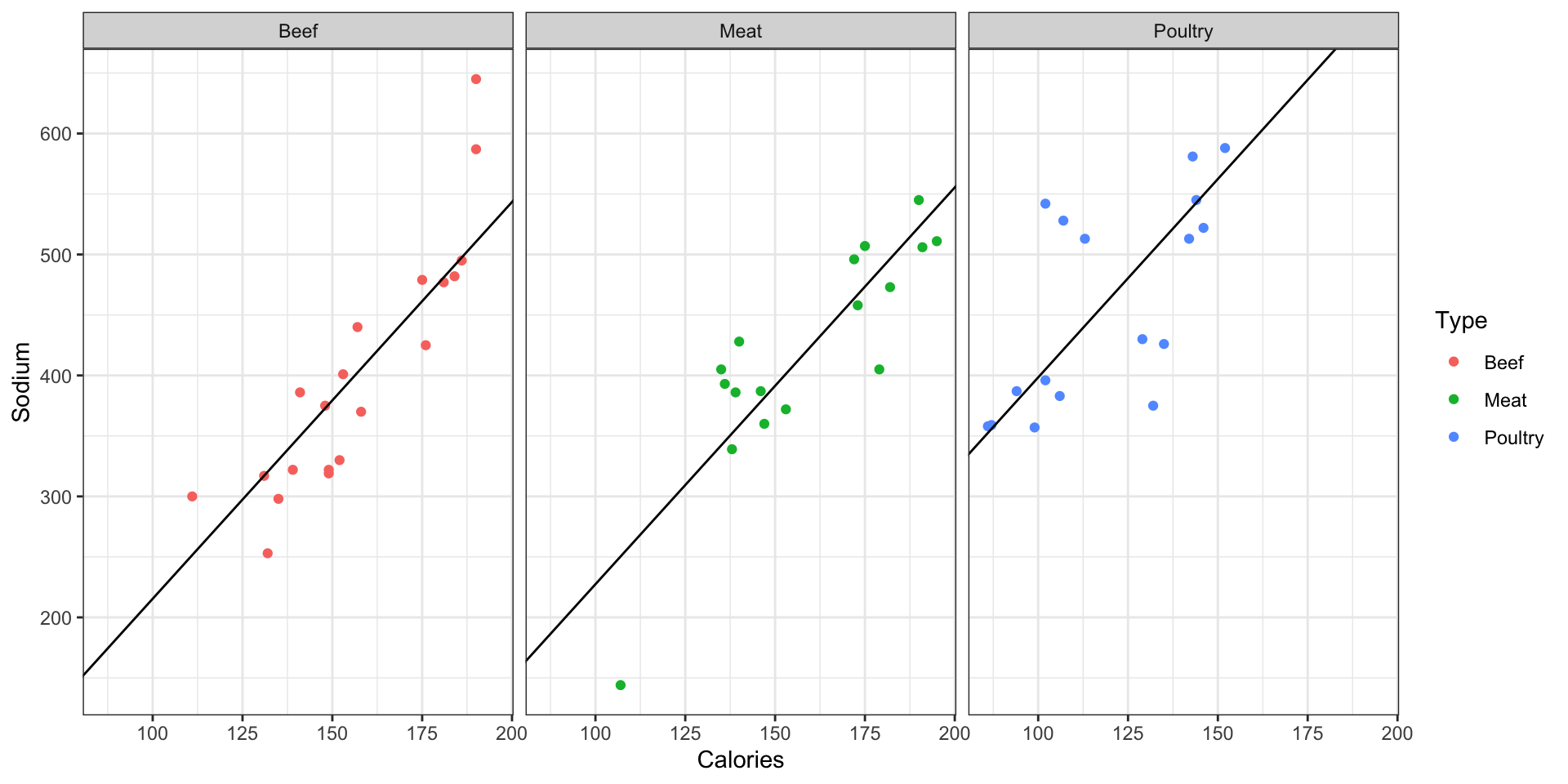

Sodium vs Calories, faceted by Type with linear model

Hypotheses

We will test the hypotheses
- \(H_0: \alpha_1=\alpha_2=\alpha_3=0\)
- \(H_A:\) at least one alpha is different
However, this time our analysis (ANCOVA) will take into account the relationship between Sodium and Calories

ANOVA table

hdsc_lm |>
  anova() |>
  tidy()

# A tibble: 3 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Calories      1 106270. 106270.      34.7  3.28e- 7
2 Type          2 227386. 113693.      37.1  1.34e-10
3 Residuals    50 153331.   3067.      NA   NA

A different conclusion

When we take into the covariate (Calories) into account, we come to a different conclusion
We reject the null hypothesis. There is an association between sodium and hotdog type
The ANCOVA compared the intercepts of the three lines
We found that the vertical distance between the lines is significantly different from 0

Adjusting for Calories

We can adjust Sodium for Calories by subtracting \(b(X_{ij}-\bar{\bar{X}})\) from each \(y_{ij}\), where \(b\) is the estimate of the slope

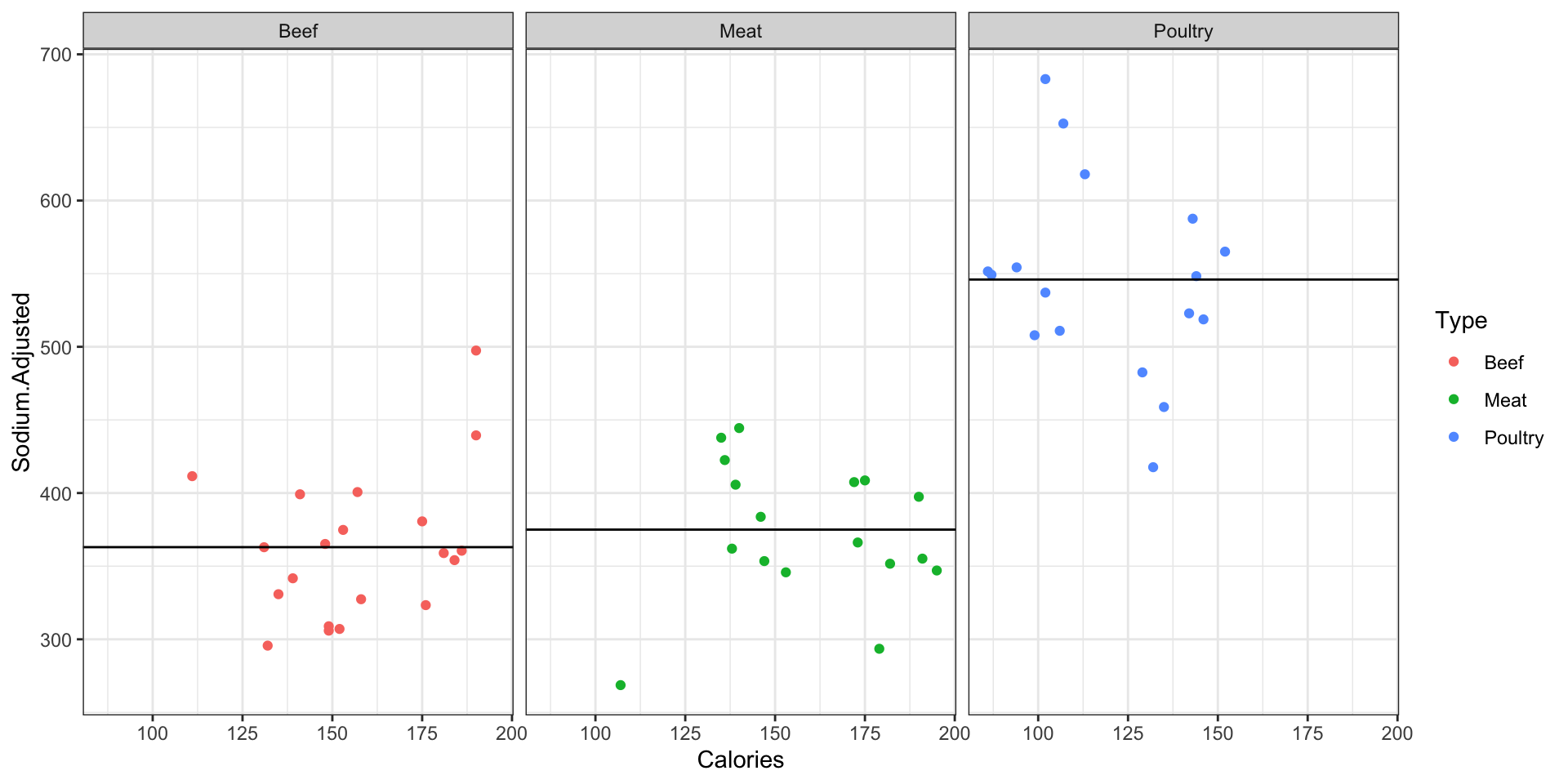

Sodium Adjusted for Calories vs Calories, faceted by Type with adjusted linear model

Sequential sums of squares

R computes sums of square sequentially by default
First, the sums of squares for calories is calculated (as a regression sum of squares) \[SS_{Calories}=\sum_{i=1}^n(\hat{y}_i-\bar{y})^2\]
\(\hat{y}\) is based on a model that does not account for hot dog type

lm(Sodium ~ Calories + Type, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 3 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Calories      1 106270. 106270.      34.7  3.28e- 7
2 Type          2 227386. 113693.      37.1  1.34e-10
3 Residuals    50 153331.   3067.      NA   NA

Compare to \(SS_{Calories}\) without Type

lm(Sodium ~ Calories, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 2 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Calories      1 106270. 106270.      14.5  0.000369
2 Residuals    52 380718.   7321.      NA   NA

Next, the sums of squares for hot dog type is calculated, accounting for calories \[SS_{Type}=\left(\sum_{i=1}^a\sum_{j=1}^{n_i}(\hat{y}_{ij}-\bar{\bar{y}})^2\right)-SS_{Calories}\]
Here, the prediction \(\hat{y}_{ij}\) uses the full model: a different intercept for each type of hot dog (but same slope)
This is the sum of squares that is accounted for by the full model that is not accounted for by calories alone

Compare \(SS_{Type}\) accounting for Calories

lm(Sodium ~ Calories + Type, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 3 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Calories      1 106270. 106270.      34.7  3.28e- 7
2 Type          2 227386. 113693.      37.1  1.34e-10
3 Residuals    50 153331.   3067.      NA   NA

To \(SS_{Type}\) without accounting for Calories

lm(Sodium ~ Type, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 2 × 6
  term         df   sumsq meansq statistic p.value
  <chr>     <int>   <dbl>  <dbl>     <dbl>   <dbl>
1 Type          2  31739. 15869.      1.78   0.179
2 Residuals    51 455249.  8926.     NA     NA

Sequential Sums of Squares: Order

lm(Sodium ~ Calories + Type, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 3 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Calories      1 106270. 106270.      34.7  3.28e- 7
2 Type          2 227386. 113693.      37.1  1.34e-10
3 Residuals    50 153331.   3067.      NA   NA

Compare to Type first

lm(Sodium ~ Type + Calories, data = hotdog) |>
  anova() |>
  tidy()

# A tibble: 3 × 6
  term         df   sumsq  meansq statistic   p.value
  <chr>     <int>   <dbl>   <dbl>     <dbl>     <dbl>
1 Type          2  31739.  15869.      5.17  9.07e- 3
2 Calories      1 301917. 301917.     98.5   2.09e-13
3 Residuals    50 153331.   3067.     NA    NA

If there is one factor of interest (Type), but we want to account for another variable (Calories), the factor of interest should enter the model last
