Decision Errors

Chapter 14
Math 115

CPR Study

  • Research question: Do blood thinners affect survival rate in heart attack patients that have received CPR?
  • cpr data set is available here
  • 2 variables
    • group: treatment (received blood thinner) or control (did not)
    • outcome: died or survived (for at least 24 hours)
  • 90 patients (40 treatment, 50 control, randomly assigned)

Hypotheses

  • Blood thinners can be administered to treat a clot that is causing a heart attack
  • CPR can cause internal injuries
  • Blood thinners can make it more difficult for these injuries to heal
  • Do blood thinners affect survival in a positive or negative way?
  • Alternative hypothesis reflects the fact that we don’t have expectations about the direction of the relationship

Two-sided hypothesis test

  • \(H_0\): Blood thinners do not affect survival rate. \(p_T-p_C = 0\)

  • \(H_A\): Blood thinners affect survival rate. \(p_T-p_C \neq 0\)

Example of one-sided hypothesis test

  • \(H_0\): Blood thinners do not affect survival rate. \(p_T-p_C = 0\)

  • \(H_A\): Blood thinners increase survival rate. \(p_T-p_C > 0\)

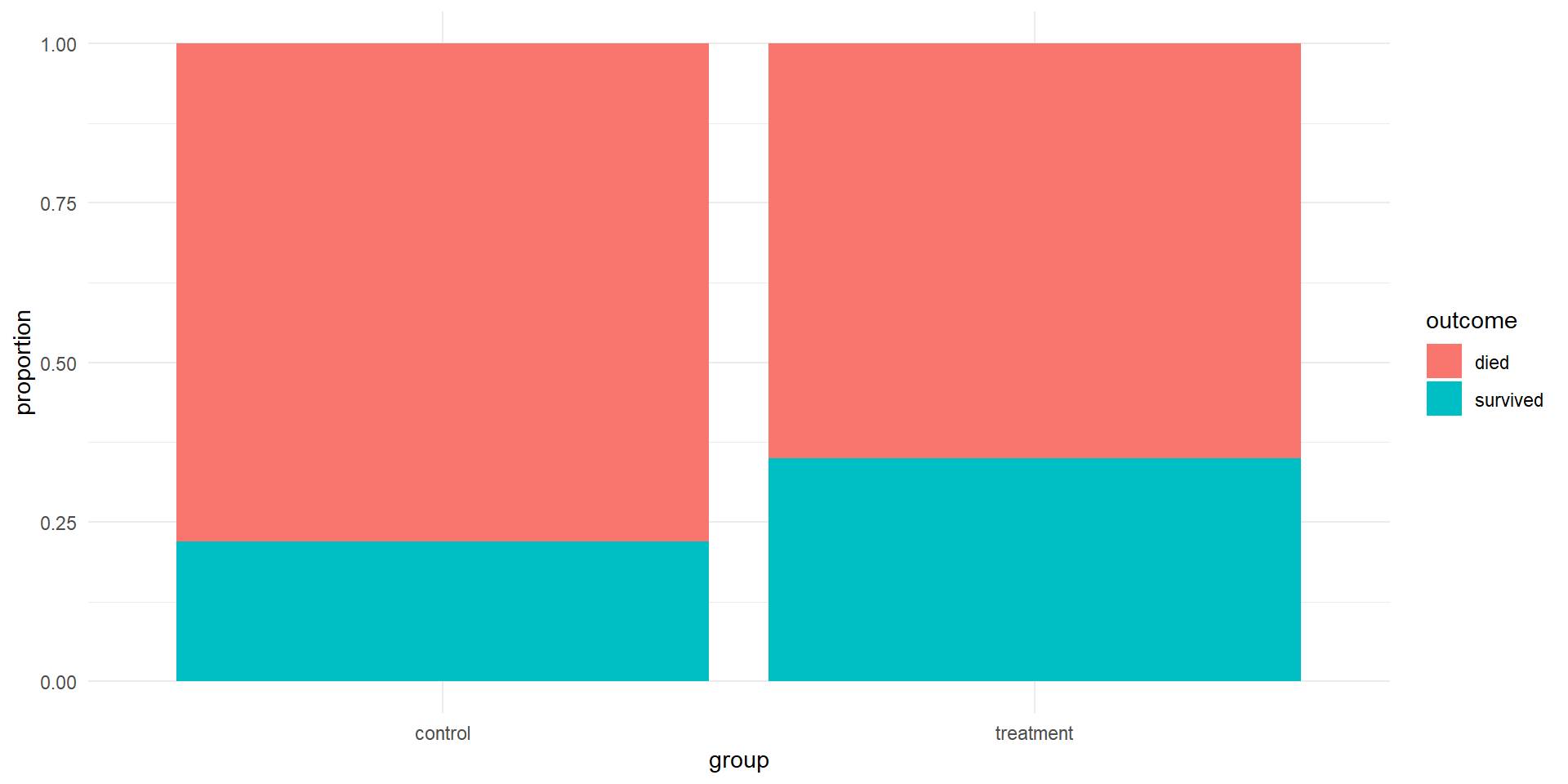

Results (EDA)

group died survived total
control 39 11 50
treatment 26 14 40
total 65 25 90

Difference in proportions

  • Success: outcome = “survived”
  • Statistic of interest: difference in proportions \[\hat{p}_T-\hat{p}_C\]
  • Observed difference: \[\frac{14}{40}-\frac{11}{50}=0.13\]

Hypothesis test

  • Technical conditions(Validity conditions) met for using a normal approximation
    • Each group has at least 10 successes and 10 failures
  • Assume that SE = 0.0955 (more on estimating this in Ch. 17)
  • Null distribution is approximately normal: \(N(0, 0.0955)\)
  • We will use significance level \(\alpha=0.05\)

P-value for 2-sided test

  • As with a 1-sided test, the p-value is the probability of observing a value of the statistic that is at least as extreme as the observed value, assuming the null hypothesis is true
  • With a 2-sided test, extreme values are in both tails of the null distribution

P-value

  • Values as extreme as test statistic in both tails of the distribution (\(\le -0.13\) and \(\ge 0.13\))
  • So p-value is twice as large as a one-sided p-value

Theory-based p-value

  • For the theory-based test we calculate the area under the normal curve

  • To calculate the p-value for a 2-sided hypothesis test we start by calculating two areas

    • The area to the left of the observed statistic
    • The area to the right of the observed statistic

Z-score

  • In order to use Jamovi calculator, We will need to find the z-score of the test statistic

  • SE = 0.0955 (more on estimating this in Ch. 17)

  • Thus, \[Z = \frac{0.13-0}{0.0955} = 1.36\]

  • Technical conditions met for using a normal approximation for the null distribution
  • Since we calculated \(Z\), we can use the standard normal distribution \(N(0,1)\)
  • We will use significance level \(\alpha=0.05\)

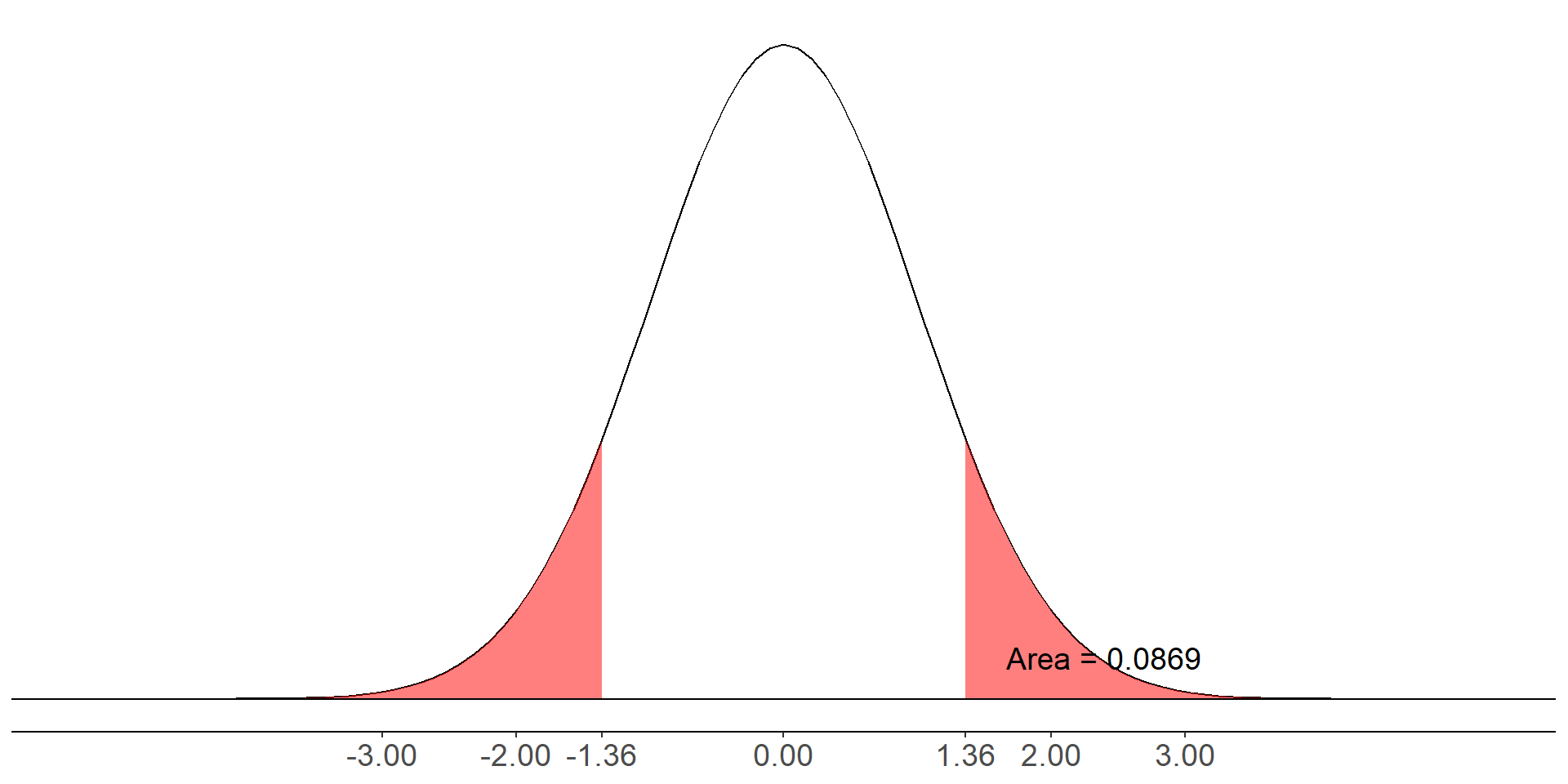

Density function standard normal distribution with two tails shaded above Z=1.36 and below -1.36.

  • So the p-valuue is \(2\times0.0869=0.1738\)
  • Since the p-value is greater than 0.05, we failed to reject the null hypothesis
  • In the context of the problem: It is plausible that there is no difference in survival rates between the two groups
  • A 95% confidence interval for the true value of the difference of proportions is \[(0.13-1.96*0.0955, 0.13+1.96*0.0955)\\(-0.057,0.317) \]
  • We are 95 confident that in the population the survival rate in the treatment group is from 5.7% lower to 31.7% higher than in the control group
  • Note that value \(0\) is inside of the confidence interval which is consistent with the fact that we failed to reject the null hypothesis \(H_0:p_T-p_C = 0\).

Decision Errors

  • There are two types of errors we can make in a hypothesis test
  • Type 1 Error occurs if we conclude that the null hypothesis is false when it is not (false alarm)
  • Type 2 Error occurs if we fail to reject the null hypothesis even though it is false (missed opportunity)

Example of Type 1 and Type 2 Errors

  • In the study on the blood thinners, we concluded that there is no significant difference in survival rates. If in reality the rate of survival is significantly different between two groups that would mean that we committed Type 2 Error

  • If the p-value of the test were lower than the significance level and we rejected the null hypothesis, but, in reality, the survival rates are the same - that would mean we committed a Type 1 Error

  • Note that once a conclusion is made (based on p-value or z-score) we can possibly commit only one type of error

Another Example

  • Scenario: Testing the safety of a bridge material.

  • Null hypothesis (\(H_0\)): The material meets safety standards.

  • Alternative hypothesis (\(H_A\)): The material does not meet safety standards.

  • Type I Error: Rejecting H₀ when it is actually true → declaring the material unsafe when it is actually safe.

    • Consequence: Wasted resources, unnecessary redesign.

  • Type II Error: Failing to reject H₀ when Hₐ is true → declaring the material safe when it is actually unsafe.

    • Consequence: Risk of bridge failure, potential accidents.

More Examples

  • Judicial system

  • \(H_0\): Innocent

  • \(H_A\): Guilty

  • Type I = wrongful conviction

  • Type II = guilty person acquitted

  • Medical Test

  • \(H_0\): Healthy

  • \(H_A\): Disease present

  • Type I = false positive

  • Type II = false negative

Summary of Type 1 and Type 2 Errors

Controlling Type 1 Errors

  • Type 1 Error is typically considered more severe
  • The probability of making a type 1 error (assuming the null is true) is equal to the significance level
  • Can reduce \(\alpha\) to make type 1 errors less likely

Controlling Type 2 Errors

  • There is a trade-off between the two types of errors
  • Decreasing probability of type 1, increases the probability of type 2
  • Power is the probability of rejecting the null hypothesis if the alternative is true
  • \(Pr[Type\:2\:Error]= 1- Power\)
  • Higher power reduces the chance of making a type 2 error
  • Power is related to effect size (easier to detect larger effects), sample size (larger sample results in more power), among other things

Power

Definition: The power of a statistical test is the probability of correctly rejecting the null hypothesis (\(H_0\)) when the alternative hypothesis (\(H_A\)) is true.

  • Interpretation: A higher power means the test is more likely to detect a true effect.
  • Goal: Most studies aim for a power of at least 80%.

Factors Affecting the Power of a Test

  • Sample Size (n)
    Larger samples reduce variability → increase power.

  • Effect Size
    Stronger true effects are easier to detect → higher power.

  • Significance Level (α)
    Higher α (e.g., 0.10 vs 0.05) increases power but also increases the risk of Type I error.

  • Population Variability
    Lower variability makes it easier to detect differences → higher power.

  • Test Design & Choice of Test
    More efficient designs (e.g., paired tests) and appropriate statistical tests increase power.

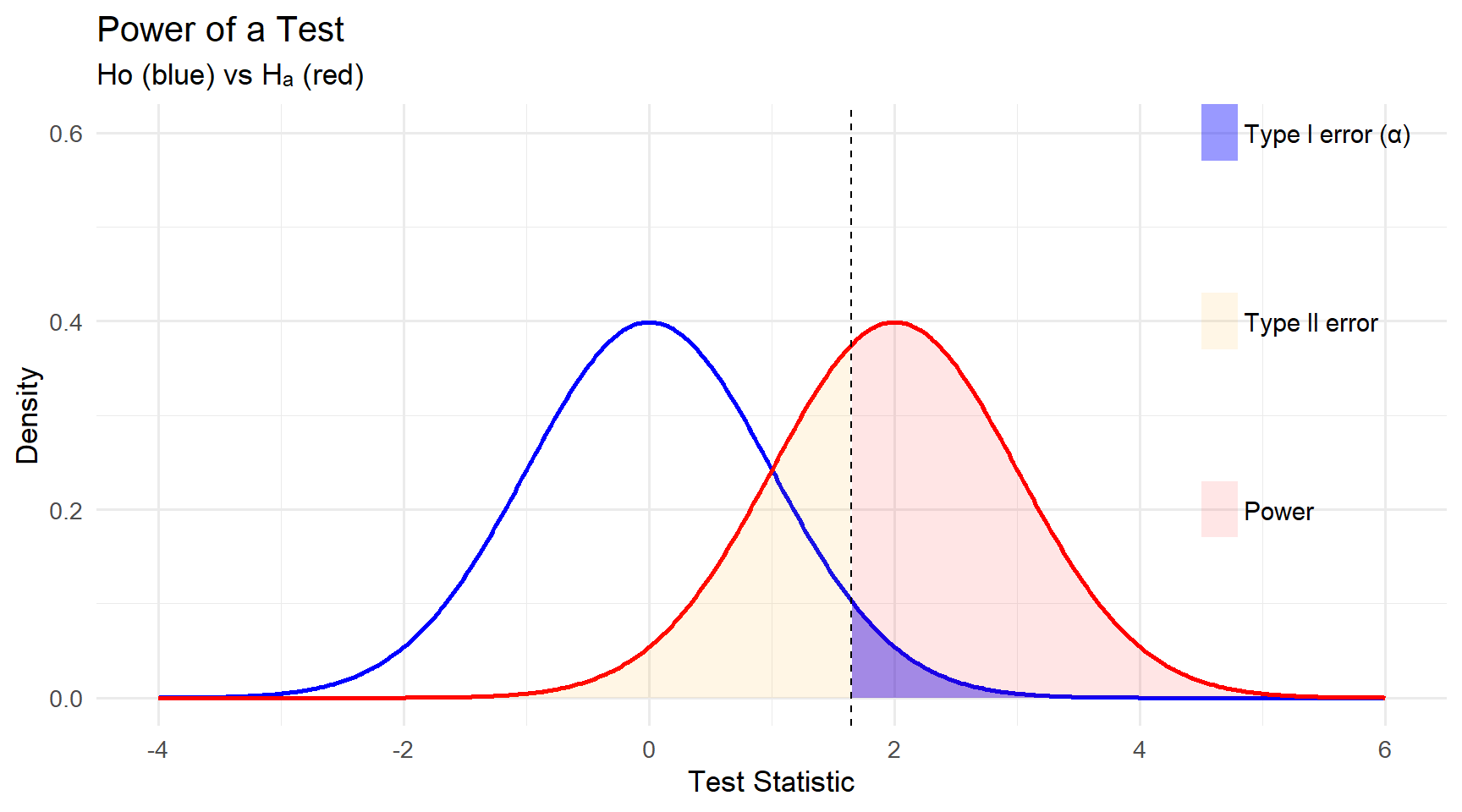

Illustration of Power

The null hypothesis distribution (H₀).

The alternative hypothesis distribution (Hₐ).
